CHENGGANG
Function | Description |
|---|---|
Gradual Profile Change | Supports the belt as it transitions from flat (0°) to the full trough angle (typically 20°, 35°, or 45°) |
Stress Reduction | Minimizes additional edge stress caused by abrupt troughing, preventing belt fatigue and cracking |
Alignment | Ensures proper belt tracking through the transition zone |
Spillage Prevention | Prevents material leakage when the belt expands from trough to flat at the head end |

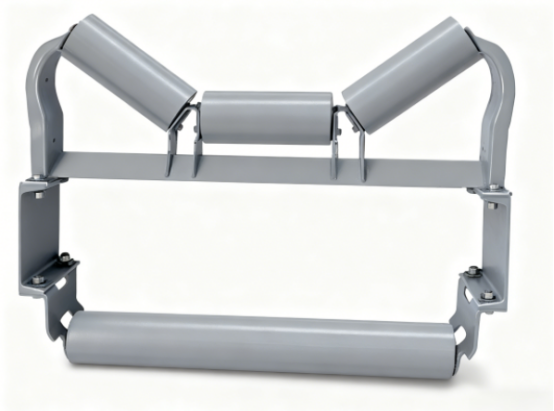

Transition idlers are installed at both ends of the conveyor:
Tail End (Loading End) : Transitions the belt from flat (at the tail pulley) to fully troughed before the first standard troughing idler
Head End (Discharge End) : Transitions the belt from fully troughed back to flat (at the head pulley)
Critical Best Practice: According to CEMA, the transition idler closest to the terminal pulley should be installed so that the top of the pulley and the top of the idler's center roll are aligned in the same horizontal plane. This alignment is known as a full-trough transition.
Multiple transition idlers are used with incrementally increasing trough angles to create a smooth transition.
Example Progression to 45° Trough:
Position | Trough Angle |
|---|---|
Tail Pulley | 0° (flat) |
Transition Idler #1 | 15° |
Transition Idler #2 | 20° |
Transition Idler #3 | 35° |
Standard Idler | 45° (full trough) |
Standard Practice: For a 45° trough angle, 2 to 3 transition idler sets are typically used at each end of the conveyor. For a 35° trough, a single 20° transition idler ahead of the 35° idler is common.
Transition idlers are available in two main configurations:
Configuration | Description | Application |
|---|---|---|
Fixed Base | Standard rigid frame with fixed trough angle (10°, 20°, 30°, etc.) | Permanent, stable installations |
Garland (Articulated) | Hinged, chain-connected rollers that flex and conform to belt contour | Yard conveyors, shiftable conveyors, dump conveyors where structure alignment may not be perfect |
Fixed Angle Types: Manufactured with specific intermediate angles (10°, 15°, 20°, 30°, 35°)
Adjustable Types: Can be modified to accommodate different trough angle positions during installation or reconfiguration
The transition idler shares the same basic components as standard troughing idlers:
Component | Material / Specification |
|---|---|
Roller Tube | Steel (ERW carbon steel) |
Shaft | Cold-drawn round steel (Grade 45# / C45) |
Bearing | Deep groove ball bearing (6204, 6205, 6305, etc.) with C3 clearance |
Bearing Housing | Steel casting or insert |
Sealing System | Internal and external labyrinth seals (dustproof, waterproof) |
Grease | Lithium-based lubricant |
End Cap | Steel or plastic protective cover |
For conveyors where material loading occurs within the transition zone, a Transition Impact Idler may be required. This specialized idler combines two functions:
Supports the belt against impact from falling materials
Gradually forms the belt from flat to the desired trough angle
Rather than using conventional roll-type idlers (which make only line contact with the belt), transition impact idlers often use polymeric slider surfaces or impact-absorbing blocks that provide continuous support and better belt protection in the loading zone
