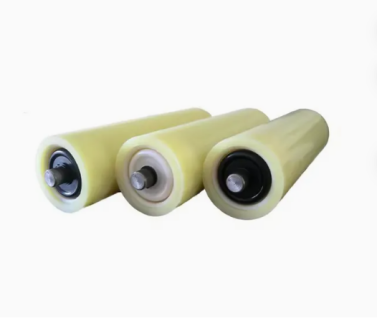

Nylon Roller：Lightweight, Durable Solutions for Modern Conveyor Systems
Nylon rollers represent a versatile class of polymer-based conveyor components that excel in applications where corrosion resistance, weight reduction, low noise, and minimal maintenance are paramount. Made from engineering-grade polyamide materials, these rollers offer a compelling alternative to traditional steel rollers in food processing, packaging, light manufacturing, and corrosive environments. Their self-lubricating properties, impact resistance, and chemical stability make them ideal for specialized conveying applications.
Key Features & Benefits
Feature | Benefit |
Corrosion-Proof | Will not rust or corrode when exposed to water, salt, acids, or alkalis |
Lightweight | Up to 70% lighter than steel rollers — easier to handle, install, and replace |
Non-Marking | Will not scratch or damage conveyed products; ideal for finished goods |
Impact Resistant | High shock absorption protects belts and reduces maintenance |
Low Noise | Significantly quieter than steel idlers — improves workplace conditions |
Chemical Resistant | Withstands aggressive chemicals, fertilizers, and detergents |
Self-Lubricating Surface | Low friction reduces belt wear and rotational resistance |
Cost-Effective | Lower purchase cost and extended service life in corrosive environments |
Technical Specifications
Parameter | Typical Value |
Material | Nylon 6, Nylon 66, or glass-filled nylon composite |
Roller Diameter | 38 mm – 159 mm (customizable) |
Wall Thickness | 3 mm – 8 mm (depending on diameter) |
Shaft Material | Carbon steel (zinc-plated) or stainless steel 304/316 |
Bearing Type | Deep groove ball bearing (6202, 6204, 6205) with C3 clearance |
Sealing System | Double labyrinth seal + rubber flinger (dustproof / waterproof) |
Operating Temperature | -20°C to +80°C (-4°F to +176°F) |
Surface Hardness | Shore D 75 – 85 |
Service Life | 30,000 – 50,000 hours (normal conditions) |
Available Configurations
Type | Description |
Flat Nylon Roller | Standard straight roller for light- to medium-duty applications |
Nylon Troughing Idler | Three-roller set (center + two wings) for belt shaping |
Nylon Return Idler | For supporting the empty belt on the return side |
Nylon Impact Idler | Extra-thick wall or rubber-disc composite for loading zones |
Nylon Guide Roller | Vertical or horizontal guide rollers for belt tracking |
Nylon rollers are fully interchangeable with steel idlers of the same diameter and length.
Applications
Industry | Specific Use |
Food Processing | Wet washing lines, acidic fruit/vegetable handling, sanitary zones |
Chemical Plants | Corrosive material handling, fertilizer conveyors |
Salt Mining & Processing | Salt conveyors where steel corrodes rapidly |
Marine & Port | Tidal zones, saltwater exposure, ship loading |
Packaging & Logistics | Non-marking product support, quiet operation |
Automated Assembly | Light-duty parts handling, cleanroom environments |
Pharmaceutical | Wash-down areas, contamination-sensitive zones |
Why Choose Nylon Over Steel or Rubber?
Property | Nylon Roller | Steel Roller | Rubber-Lagged Roller |
Corrosion Resistance | ★★★★★ | ★☆☆☆☆ | ★★★☆☆ |
Weight | ★★★★★ (light) | ★☆☆☆☆ (heavy) | ★★★☆☆ |
Noise Level | ★★★★★ (quiet) | ★★☆☆☆ (loud) | ★★★★☆ |
Non-Marking | ★★★★★ | ★★☆☆☆ | ★★★★☆ |
Chemical Resistance | ★★★★★ | ★☆☆☆☆ | ★★★☆☆ |
Impact Absorption | ★★★★☆ | ★★☆☆☆ | ★★★★★ |
Initial Cost | ★★★★☆ (low) | ★★★★★ (lowest) | ★★★☆☆ |
Quality Standards
All nylon rollers are manufactured in compliance with:
ISO 9001:2015 – Quality management system
DIN 15207 / ISO 15360 – Dimensional accuracy
CEMA standards – Interchangeable dimensions
FDA / EU 10/2011 – Food-grade nylon available upon request
Each roller undergoes 100% inspection for:
Ordering Information
Please specify the following when requesting a quote:
Roller diameter (mm or inch)
Roller length / face width (mm or inch)
Shaft diameter & length (mm or inch)
Material grade (standard nylon, glass-filled, food-grade, etc.)
Sealing type (standard dustproof or heavy-duty waterproof)
Quantity required
Optional accessories (mounting brackets, frames, or complete idler sets)
