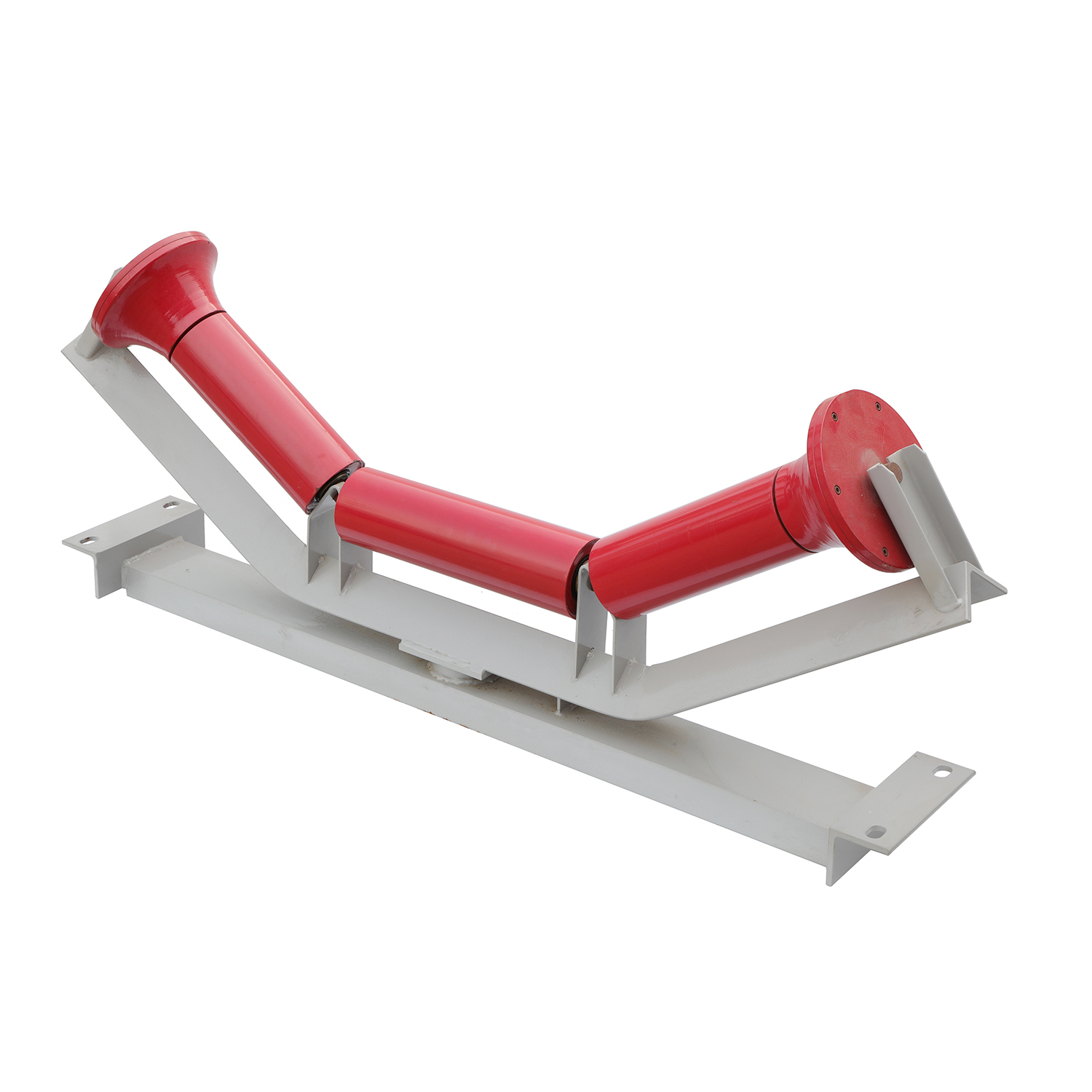

Self-aligning Idler

Self-aligning idler is a specialized conveyor component designed to automatically correct belt misalignment. It typically features a central pivoting troughing idler or a specially designed roller assembly. When the conveyor belt begins to drift off-center, the idler rotates or adjusts its angle, creating a steering effect that gently guides the belt back to its proper path. This automatic correction prevents edge damage, reduces material spillage, and minimizes wear, significantly enhancing operational safety and reducing maintenance costs for the conveyor system.

Quantity:
Availability:





Inquire Add to Basket

Product Category

Product Description

Conveyor idlers: Available in diameters ranging from 50 mm to 219 mm (2 1/2" to 8 5/8"), with lengths from 190 mm to 3400 mm, to suit a wide range of conveyor systems.

Idler tube: Made from Q235 (equivalent to SS400/JIS G3101/EN10025/ASTM A36 ) steel for durability and strength.

Idler shaft: Constructed from 45# (equivalent to DIN:C45/EN:C45/JIS:S45C/ASTM A1045 )steel for reliable performance.

Bearing: Equipped with single and double row deep groove ball bearings, with 2RZ and 2Z options available, and C3 clearance for enhanced efficiency and reduced friction.

Seals system: Features a grease retaining inner seal with multi-stage labyrinth design, along with a retention cap, to prevent dust and debris from entering the bearing.

Lubrication: Uses lithium soap type grease with rust inhibitors, to ensure smooth and reliable operation.

Welding technology: Utilizes mixed gas shielded arc welding for strong and consistent welds.

Painting technology: Offers a variety of painting options, including ordinary painting, hot galvanized painting, electric static spraying painting, and baked painting, to suit the specific needs of each application.

Shaft End:
