Heavy-duty Idlers：The Backbone of High-Tonnage Conveying Systems
Heavy-duty idlers represent the pinnacle of conveyor component engineering, specifically designed to withstand the punishing conditions of high-capacity bulk material handling. These robust systems support extreme loads, absorb massive impact forces, and operate reliably in abrasive, high-temperature environments where standard idlers would fail prematurely. From iron ore mining to aggregate processing and port terminal operations, heavy-duty idlers ensure continuous material flow under the most demanding conditions.
CEMA Classifications for Heavy-Duty Idlers
The Conveyor Equipment Manufacturers Association (CEMA) defines standard load ratings for idlers. Heavy-duty applications typically fall into CEMA Classes D, E, and F:
CEMA Class | Typical Application | Roll Diameter | Bearing Size |
D | Medium-heavy duty; aggregate, coal, sand | 5" – 6" | 25mm – 30mm |
E | Heavy duty; mining, large quarry operations | 6" – 7" | 35mm – 40mm |
F | Extreme duty; high-tonnage mining, overland systems | 7" – 8"+ | 40mm – 60mm+ |
CEMA E and F idlers are designed for the biggest belts and the toughest loads, handling extreme tonnage and punishing environments with bearing sizes up to 60mm .
Key Design Features
1. Large-Diameter Rolls
Heavy-duty idlers use larger roll diameters (typically 5" to 8" or more) to:
Reduce rotational speed, extending bearing life
Provide greater structural rigidity
Better withstand impact loads
2. Heavy-Gauge Steel Construction

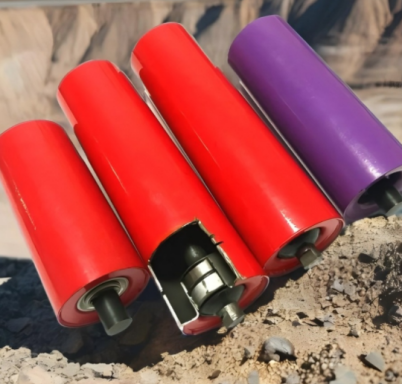

The tube, shaft, and frame are manufactured from high-strength steel. For extreme applications, double tube construction uses dual steel tubes reinforcing the roll shell for higher rigidity, maintaining bearing alignment, and preventing shell collapse .
Solid steel shafts are standard—for example, Martin CEMA E idlers use a 1-5/8" solid steel shaft machined down to 40mm at each end .
3. Advanced Bearing Protection & Sealing
The most critical feature of any heavy-duty idler is its sealing system. Contaminants like dust, grit, and moisture are the primary causes of bearing failure.
Typical heavy-duty sealing systems include:
Seal Component | Function |
External Shield | Deters large impurities from entering the bearing housing |
Flinger Design | Removes contaminants by centrifugal force, throwing particles away from the bearing |
Grease-Filled Labyrinth Seal | Creates a tortuous path (often triple labyrinth) filled with grease for additional protection |
Contact Lip Seal | Adds a final layer of protection against contaminant ingress |
This multi-stage approach ensures reliable operation even in muddy, dusty, and harsh environments .
4. Sealed-for-Life Bearings
Heavy-duty idlers (CEMA D, E, and F) typically use sealed-for-life ball bearings. These bearings come pre-lubricated from the factory and require no maintenance. They also offer extremely low rolling resistance, which lowers operating costs .
5. Precision Manufacturing & Low Runout
High-quality heavy-duty idlers are manufactured with tight tolerances to provide reduced Total Indicator Reading (TIR) runout. This results in:
Martin idlers, for example, are noted for exceptionally low TIR runout, and Superior's patented flush, lipless end disc improves balance while reducing material trapping .
Types of Heavy-Duty Idlers
Type | Description | Typical Application |
Equal Troughing Idler | Three rollers (center + two wings) forming a trough; available in 20°, 35°, or 45° angles | Carrying side of the belt; supports material load |
Impact Troughing Idler | Rollers equipped with rubber discs to cushion impact; reinforced frame to reduce bending | Loading and transfer points; absorbs falling material impact |
Return Idler | Supports the empty belt on its return path; available as flat, V-return, or disc type | Return side of the conveyor |
Self-Aligning / Tracking Idler | Designed to correct belt misalignment; includes a pivoting mechanism | Where belt tracking issues are common |
Heavy-duty impact idlers are located at loading and transfer points. The rollers are equipped with rubber discs that cushion the impact and reduce costly belt damage, while the frames are reinforced to reduce bending and withstand heavy material loads .
