Conveyor Belt Bend Snub Tail Pulley

Robust construction: Made of high-quality materials, it is designed to be strong and durable. It can withstand heavy loads and harsh operating conditions.

Quantity:




Inquire Add to Basket

Product Category

Product Description

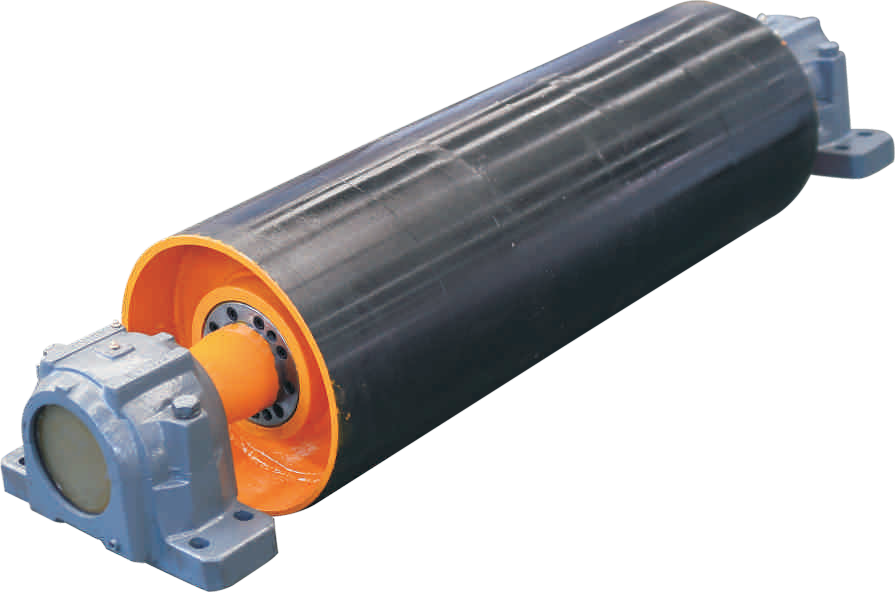

The DT11 type redirecting pulley has the following characteristics:

I. Structural characteristics

1. Robust construction: Made of high-quality materials, it is designed to be strong and durable. It can withstand heavy loads and harsh operating conditions.

2. Precise dimensions: The dimensions of the pulley are carefully engineered to ensure proper fit and alignment with the conveyor belt. This helps in smooth operation and reduces wear and tear.

3. Sealed design: The pulley is often equipped with seals to prevent dust, moisture, and other contaminants from entering the bearing area. This prolongs the life of the bearings and reduces maintenance requirements.

II. Performance characteristics

1. Efficient redirection: It effectively changes the direction of the conveyor belt, allowing for smooth and continuous material flow. The design minimizes friction and power loss, improving overall conveyor efficiency.

2. High load capacity: Capable of handling heavy loads, it provides reliable support and guidance for the conveyor belt. This makes it suitable for a wide range of applications in industries such as mining, quarrying, and manufacturing.

3. Low noise and vibration: The well-designed construction and quality components result in reduced noise and vibration levels during operation. This creates a more comfortable working environment and reduces wear on other conveyor components.

4. Stable operation: The pulley operates smoothly and consistently, ensuring stable conveyor belt movement. This helps in preventing belt misalignment, spillage, and other operational issues.

III. Application characteristics

1. Versatile: Can be used in various types of conveyor systems, including belt conveyors, bucket elevators, and screw conveyors. It is suitable for different belt widths and speeds, making it a flexible choice for different applications.

2. Easy installation: The pulley is designed for easy installation and replacement. It can be quickly and easily integrated into existing conveyor systems, minimizing downtime and installation costs.

3. Reliable performance: With its high-quality construction and reliable operation, the DT11 type redirecting pulley offers long-term performance and durability. It reduces the risk of breakdowns and maintenance requirements, ensuring continuous operation of the conveyor system.

IV. Maintenance characteristics

1. Minimal maintenance: Due to its sealed design and quality components, the pulley requires minimal maintenance. Regular inspection and lubrication are usually sufficient to keep it in good working condition.

2. Easy access for maintenance: The design allows for easy access to the bearings and other components for maintenance and inspection. This simplifies maintenance tasks and reduces downtime.

3. Long service life: The combination of robust construction, quality materials, and proper maintenance results in a long service life for the pulley. This reduces the frequency of replacement and lowers overall operating costs.

Parameters

B	D	Bearing	Dimension										Smooth	rubber	drawing No
B	D	Bearing	A	L	LI	Q	P	H	h	M	n	d0	/kg	kg	drawing No
400	200	22210	750	500	830	260	320	90	33	70		M16	75	80	40B101(G)
	250												91.5	98	40B102(G)
	315												1024	110	40B103(G
500	200	22210	850	600	930	260	320	90	33	70		M16	83	89	50B101(G)
	250												102	110	50B102(G)
	315												114	124	50B103(G)
	500	22212											189	205	50B105(G)
650	315	22210	1000	750	1101	260	320	90	33	70		M16	132	144	65B103(G
	315	22212			1110	280	340	100	33	70		M16	164	176	65B203(G
	400	22212			1110	280	340	100	33	70		M16	187	203	65B104(G)
800	315	22216	1250	950	1344	350	410	120	33	70		M20	249	263	80B203(G
	400	22216	1300		1344	350	410	120	33	70		020	277	296	80B104(G)
	500	22220	1300		1411	380	460	135	46	80		024	444	467	80B105(G)
	630	22220	1300		1411	380	460	135	46	80		M24	505	534	80B106(G)
	630	22224	1300		1423	440	530	155	46	110		M24	695	724	80B206(G)
1000	630	22232	1600	1150	1750	520	640	200	65	200	105	M30	1142	1177	100B406(G)
	800	22224	1500		1623	440	530	155	46	110		M24	882	935	100B107(G)
	800	23240	1650		1894	640	780	240	75	255	140	M30	2144	2197	100B507(G)
	1000	23244	1650		1894	720	880	270	80	270	140	M36	2886	2954	100B508(G)
	1250	24152	1600		1940	750	900	290	90	320	170	M36	3943	4028	100B309(G)
	1400	23248	1650		1934	750	900	290	90	300	150	M36	3991	4085	100B110(G)
1200	630	22232	1850	1400	2000	520	640	200	65	200	105	M30	1261	1303	120B406(G
	800	23240	1900		2144	640	780	240	75	255	140	M36	2337	2401	120B507(G)
	1000	23248	1900		2184	750	900	290	90	300	150		3541	3624	120B608(G)
	1400	23160	1900		2190	940	1150	330	100	320	170		5832	5949	120B110(G)
	1600	23268	2050		2500	1010	1200	380	120	470	260	M42	8617	8745	120B111(G)
1400	630	22232	2050	1600	2200	520	640	200	65	200	105	030	1356	1404	140B306(G)
	800	23244	2100		2344	720	880	270	80	270	140	M36	3006	3079	140B607(G
	1000	24152	2100		2390	750	900	290	90	320	170	M36	4005	4096	140B708(G)
	800	23268	2250		2700	1010	1200	380	120	470	260	M42	7855	7974	140B509(G
	800	24156	2100		2390	840	1000	310	100	320	170	M36	5360	5487	140B110G
	1400	23160	2100		2390	940	1150	330	100	320	170	M36	6163	6296	140B210(G
	1400	23268	2250		2700	1010	1200	380	120	470	260	M42	8267	8400	140B310(G
	1600	23268	2250		2700	1010	1200	380	120	470	260	M42	9013	9159	140B111(G
	1600	23272	2250		2726	1050	1240	400	120	485	260	M42	9698	9844	140B211(G
1600	630	22236	2300	1800	2466	570	700	220	70	220	120	M30	1798	1867	160B406(G)
	800	23248	2350		2634	750	900	290	90	300	150	M36	3656	3739	160B707(G)
	1000	24152	2400		2640	750	900	290	90	320	170	M36	4109	4411	160B508(G)
	1000	24156	2400		2640	840	1000	310	100	320	170	M36	4814	4916	160B608(G
	1250	23268	2450		2900	1010	1200	380	120	470	260	M42	8198	8327	160B409(G)
1800	630	23240	2500	2000	2744	640	780	240	75	255	140	M30	2531	2592	180B506(G)
	800	24152	2550		2840	750	900	290	90	320	170	M36	4136	4228	180B507(G)
	1000	24152	2550		2840	750	900	290	90	320	170	)36	4524	4638	180B408(G)
	1000	23156	2550		2840	840	1000	310	100	320	170	M36	5062	5176	180B508(G)
	1250	23248	2650		3100	1010	1200	380	120	470	260	M42	8542	8685	180B309(G)
2000	630	23240	2700	2200	2944	640	780	240	75	255	140	030	2665	2731	200B406(G)
	800	24152	2750		3040	750	900	290	90	320	170	M36	4328	4429	200B507(G)
	1000	24156	2750		3040	840	1000	310	100	320	170	M36	5311	5437	200B608(G)
	1250	24152	2750		3040	750	900	290	90	320	170	M36	5256	5414	200B109(G)

Pulley is one of the important components of belt conveyors. The pulleys with the following characteristics:

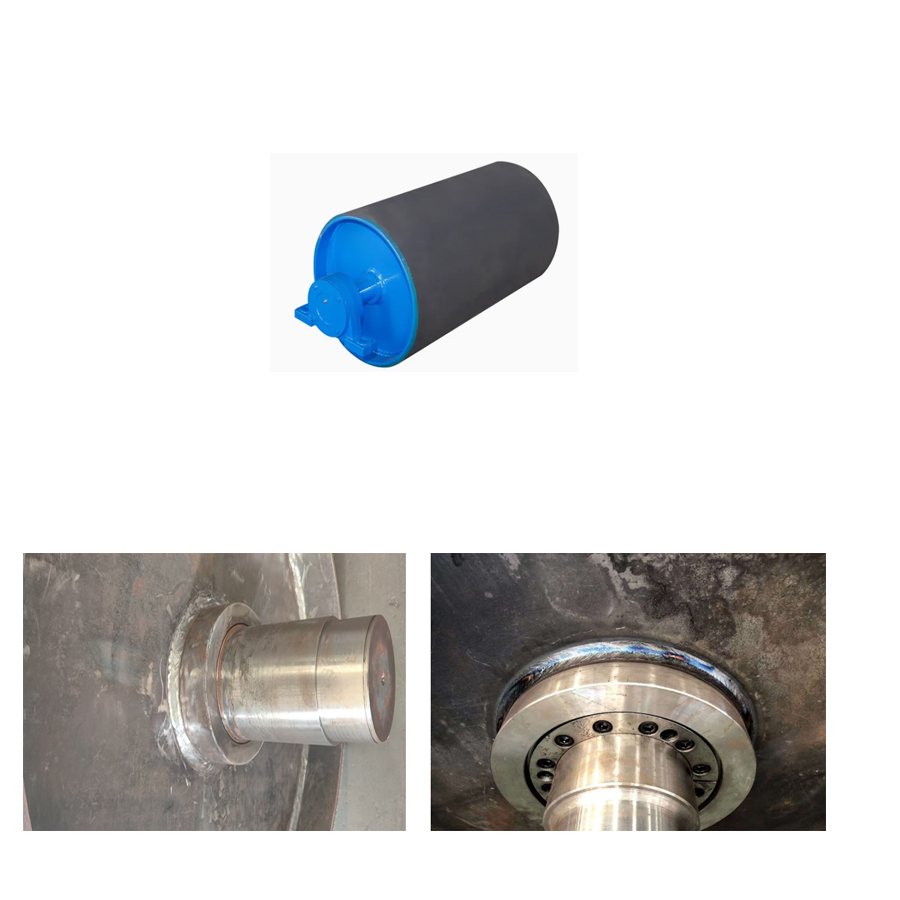

1. The connecting plate is integrally cast by lost foam casting technology, which has balanced stress and high strength.

2. Keyless connection (expansion sleeve is used for drive pulleys and interference fit is used for bend pulleys), greatly reducing the failure probability of the shaft.

3. The pulley shell is made by rolling steel plates with good material quality and guaranteed radial runout.

4. Conduct static balance tests one by one to ensure smooth operation.

5. The proprietary vulcanized rubber layer improves the friction and wear resistance of the pulley, effectively increasing the service life of the pulley.

6. Adopt advanced finite element analysis method for optimized design to make high-strength drums reliable in performance and guaranteed in quality.

Classification of pulleys:

1. Driving pulleys are crucial components for transmitting power. The pulleys come in smooth surface and rubber surface type. The rubber surface can be further divided into smooth rubber, herringbone rubber, and rhombic rubber to meet different process requirements.

2. Return pulleys are main parts for the operation of belt conveyors. They are divided into pulleys with smooth surfaces and rubber surfaces. According to structural forms, they are classified into light-duty, medium-duty, and heavy-duty series.

3. Motorized pulleys, as power components of belt conveyors, are widely used in applications such as mining, metallurgy, chemical industry, coal, building materials, electricity, grain, and transportation etc.

Our available conveyor pulleys/drums:

Coveyor pulley/conveyor drum/drive pulley/motorized pulley/return pulley/tail pulley/carrying pulley/bend pulley/motorized drum/Snub pulley/Ceramic Lagging Pulley/ Plain Lagging Pulley/Conveyor head pulley/Conveyor drive pulley/Conveyor bend pulley/Conveyor Tail Pulley/Conveyor tension pulley/Conveyor snub Pulley/Conveyor Wing Pulley/ Conveyor take up Pulley/Rubber Lagging Belt Conveyor Drive Pulley Drum/Smooth Steel Surface pulley/ Rubber Lagging Surface pulley/snub pulley/bend drum/take-up pulley/Conveyor Diamond Drum Pulley Lagging Rubber/Cema Conveyor Head Pulley

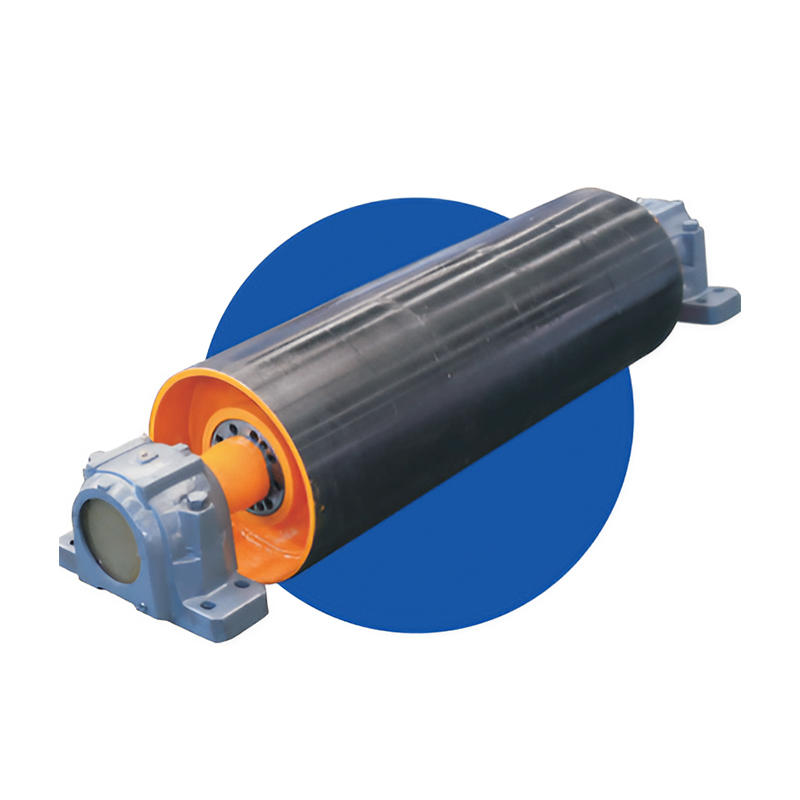

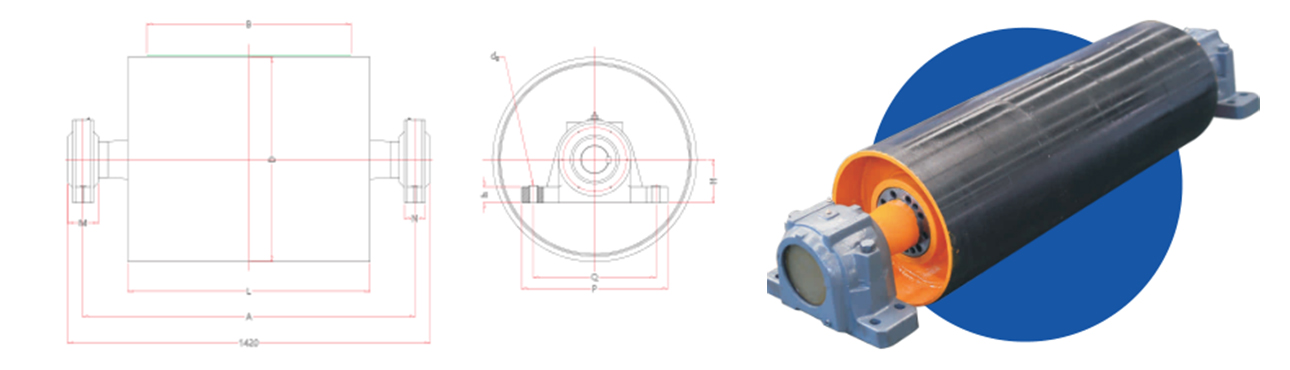

DT11 Tail Pulley
