I. Structural Features
1. Integrated design:

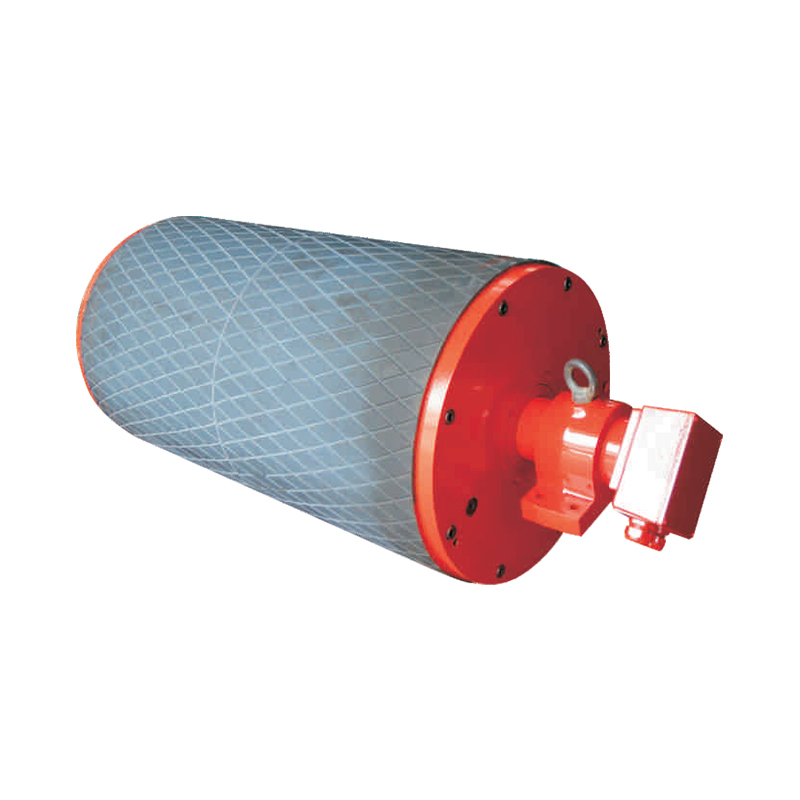

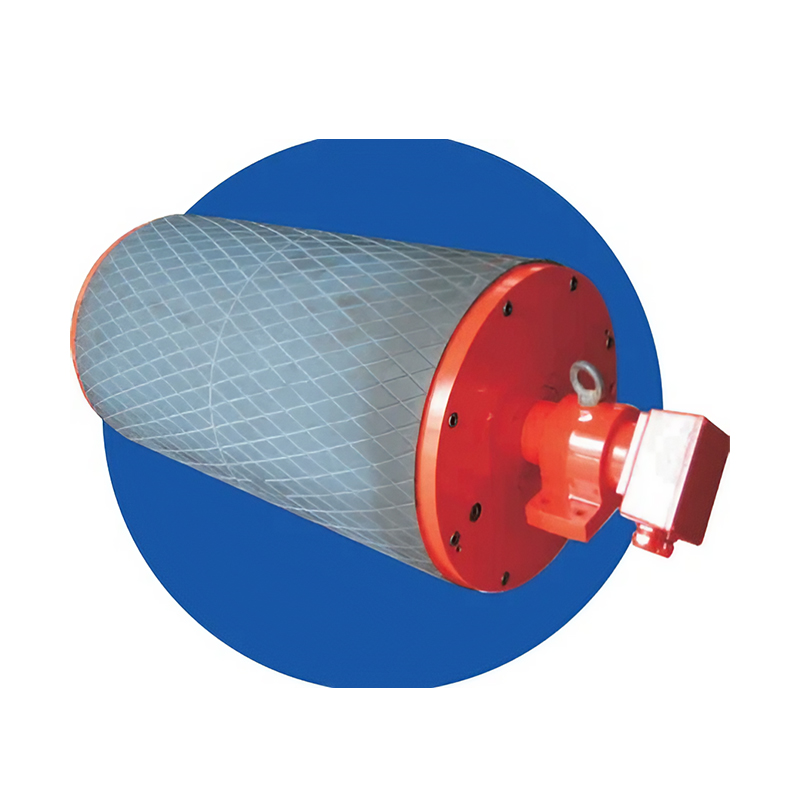

Combines the motor, reducer and drum into a compact unit. This integrated structure saves installation space and simplifies the conveyor system.
2. Oil bath lubrication:
The internal components are immersed in oil, providing excellent lubrication and cooling. This helps to reduce wear and extend the service life of the equipment.
3. Sealed construction:
The drum is well-sealed to prevent oil leakage and the ingress of dust and moisture. This ensures the reliability and durability of the electric drum.
II. Performance Features
1. High power density:
Due to the efficient design and oil bath cooling, the oil-immersed electric drum can deliver high power output in a relatively small size. This makes it suitable for applications where space is limited but high torque is required.
2. Smooth operation:
The oil lubrication reduces friction and vibration, resulting in smooth and quiet operation. This is beneficial for applications where noise reduction is important.
3. Wide speed range:
Can be designed to operate at different speeds, allowing for flexible adjustment of conveyor speed to meet various production requirements.
4. Reliable performance:
With proper maintenance, the oil-immersed electric drum offers reliable and consistent performance over a long period.
III. Application Features
1. Heavy-duty applications:
Ideal for conveying heavy loads and materials in industries such as mining, quarrying, cement, and steel. It can handle tough operating conditions and high shock loads.
2. Continuous operation:
The oil bath lubrication and cooling enable continuous operation without overheating. This is suitable for applications where the conveyor needs to run for extended periods.
3. Outdoor use:
Some oil-immersed electric drums are designed for outdoor installation and can withstand harsh weather conditions.
IV. Maintenance Features
1. Oil change and inspection:
Regular oil change and inspection are necessary to ensure proper lubrication and cooling. This helps to maintain the performance and longevity of the electric drum.
2. Seal maintenance:
Check and maintain the seals to prevent oil leakage and the entry of contaminants. Replace damaged seals promptly to avoid damage to the internal components.
3. Professional maintenance:
For complex maintenance tasks or when dealing with major issues, it is advisable to seek professional assistance to ensure proper repair and restoration of the electric drum.
Parameters
| D | B | A | L | H | M | N | P | Q | h | ds | E |
Φ630
Φ800
Φ1000 | 800 | 1300 | 950 | 140 | 130 | 80 | 400 | 330 | 50 | Φ27 | 260(≤37KW)
280(≥45KW) |
| 1000 | 1500 | 1150 |
| 1200 | 1750 | 1400 | 160 | 150 | 90 | 440 | 360 | 50 | φ34 |
| 1400 | 2000 | 1600 |
| 1600 | 2200 | 1800 |
| 1800 | 2400 | 2000 |
| 2000 | 2600 | 2200 |
Pulley is one of the important components of belt conveyors. The pulleys with the following characteristics:
1. The connecting plate is integrally cast by lost foam casting technology, which has balanced stress and high strength.
2. Keyless connection (expansion sleeve is used for drive pulleys and interference fit is used for bend pulleys), greatly reducing the failure probability of the shaft.
3. The pulley shell is made by rolling steel plates with good material quality and guaranteed radial runout.
4. Conduct static balance tests one by one to ensure smooth operation.
5. The proprietary vulcanized rubber layer improves the friction and wear resistance of the pulley, effectively increasing the service life of the pulley.
6. Adopt advanced finite element analysis method for optimized design to make high-strength drums reliable in performance and guaranteed in quality.
Classification of Pulleys

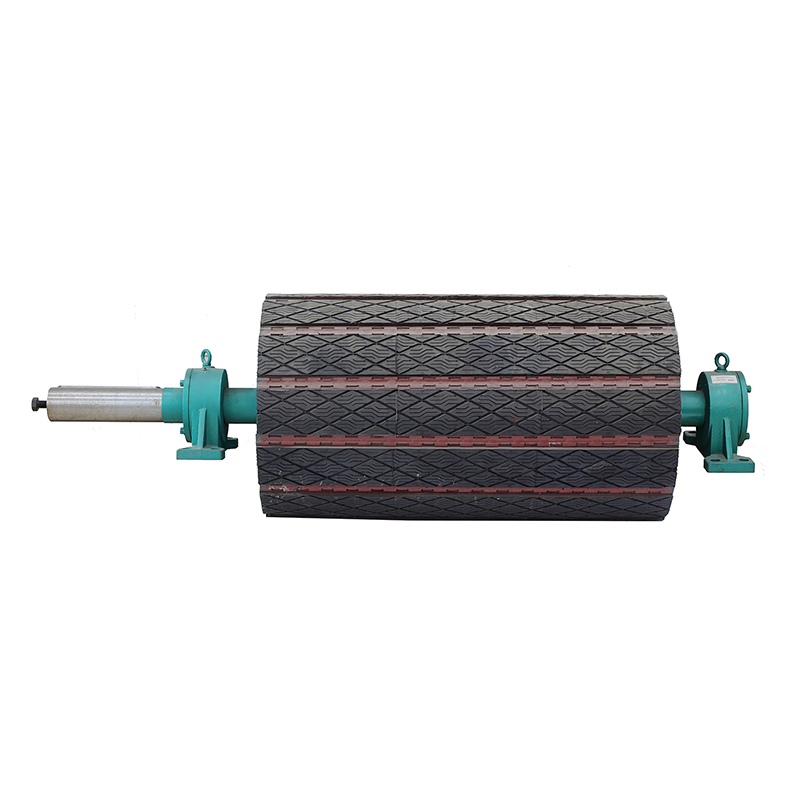

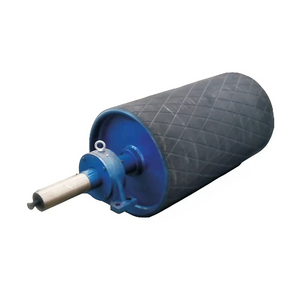

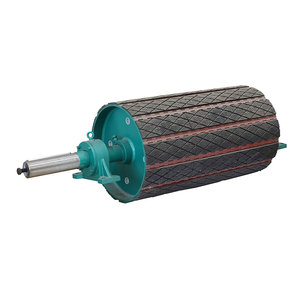

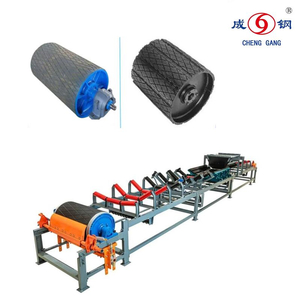

1. Driving pulleys are crucial components for transmitting power. The pulleys come in smooth surface and rubber surface type. The rubber surface can be further divided into smooth rubber, herringbone rubber, and rhombic rubber to meet different process requirements.
2. Return pulleys are main parts for the operation of belt conveyors. They are divided into pulleys with smooth surfaces and rubber surfaces. According to structural forms, they are classified into light-duty, medium-duty, and heavy-duty series.

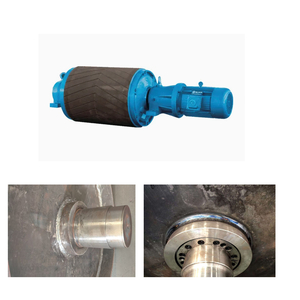

3. Motorized pulleys, as power components of belt conveyors, are widely used in applications such as mining, metallurgy, chemical industry, coal, building materials, electricity, grain, and transportation etc.
