Factors Influencing the Number of Pulleys in a Conveyor System
1. Conveyor Length and Material
The number of pulleys is largely determined by the length of the conveyor system and the type of materials being transported. Longer conveyors often require more pulleys to maintain tension and support weight. Analyze your materials to determine proper support.
2. Conveyor Type and Design
Different conveyor types (e.g., belt, chain, or roller) have different design requirements that affect pulley placement. Design intricacies require careful assessment of the conveyor type to determine how many pulleys will be necessary.
3. Load Capacity Requirements
The payload capacity will influence whether you need additional pulleys for support. Heavier loads might require more pulleys to ensure that the conveyor can handle the stress without failure.
4. Elevation Changes in Conveyor Path
If your conveyor system includes any elevation changes, this will affect the number of pulleys needed for smooth operation. Pulleys are essential in managing the incline and ensuring proper tension throughout the system.
5. Manufacturer Recommendations
Consulting with conveyor manufacturers can provide insights tailored to your specific needs. Manufacturers often provide guidelines for installing pulleys based on industry best practices.
Step-by-Step Guide to Calculating Required Pulleys for Your Conveyor
Step 1: Assess Your Conveyor Requirements
Evaluate the total distance the conveyor must cover and the type of materials it will transport. This initial assessment sets the foundation for your pulley needs.
Step 2: Choose the Right Conveyor Design
Select a conveyor design that fits your operational needs. The choice between a belt, chain, or roller will impact the pulley requirements significantly.
Step 3: Determine Load Capacity
Calculate the total weight of the load your conveyor will carry. This figure is crucial for determining the number of pulleys you'll need to adequately support the system.
Step 4: Decide on Elevation Changes
If applicable, note any elevation rises or declines that the conveyor will encounter. These changes may require additional pulleys to assist with lift and tension management.
Step 5: Consult Your Manufacturer's Guide
Refer to the documentation provided by your conveyor system’s manufacturer. Use their pulley recommendation tables to finalize your calculations.
Step 6: Test Your Setup
Before the full operational launch, run tests to monitor the conveyor system. Ensure that everything functions correctly with the selected number of pulleys in place.
Common Mistakes to Avoid
- Overlooking the importance of material properties when calculating pulley needs.
- Underestimating the effects of elevation changes on pulley requirements.
- Ignoring manufacturer recommendations that provide valuable industry insights.
- Failing to account for potential future modifications or upgrades in your conveyor system.

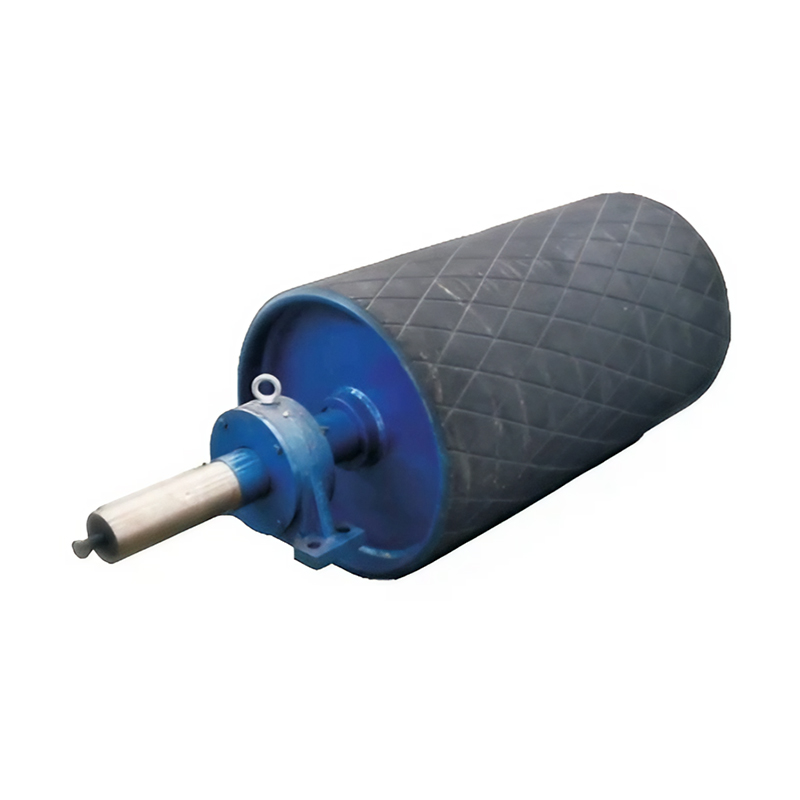

Conveyor Belt Pulley is vital in the successful operation of conveyor systems. By following the steps outlined above, you can ensure that you install the right number of pulleys for your specific needs. If you have any further inquiries or require additional support, feel free to reach out to 成钢.
