High quality rubber conveyor rollers enhance continuous industrial belt conveyor efficiency by providing superior shock absorption, minimizing conveyor belt cover wear, eliminating localized material buildup, and reducing operational acoustic emissions in severe bulk material processing environments.
Table of Contents
Maximizing Efficiency with High-Quality Rubber Conveyor Rollers
The Core Advantages of Rubber Conveyor Rollers
Material Selection for Rubber Conveyor Rollers
Comparison: Rubber vs. Steel Rollers
Maintenance Tips for Rubber Conveyor Rollers
Technical Specifications for Rubber Conveyor Rollers
Industry Applications: Where Rubber Rollers Excel
Maximizing Efficiency with High-Quality Rubber Conveyor Rollers
Maximizing industrial throughput requires utilizing rubber conveyor rollers to maintain continuous belt tracking, optimize rotational resistance, and minimize unscheduled downtime caused by component wear.
Industrial processing plants operate on strict production targets where continuous conveyor belt uptime directly influences operational profitability. When high-tonnage materials like iron ore, crushed limestone, or wet gravel drop onto moving conveyor belts, the resulting kinetic shock transfers through the system structure. Standard rigid components translate these shock forces directly into the bearing housings and support frames, leading to structural fatigue, shell cracking, and premature bearing destruction. Integrating specialized rubber conveyor rollers absorbs these structural shocks, dampening peak impact forces by up to sixty percent and stabilizing dynamic belt tracking across variable load states.
System energy efficiency is heavily governed by the rotational resistance of the conveyor idlers. Modern industrial facilities pay close attention to power consumption across kilometer-long overland conveyors. Precision-engineered high quality rubber conveyor idlers feature calibrated rubber compounds designed to balance elastic energy return with mechanical dampening. This ensures that the roller shell deforms slightly under load to absorb shock while maintaining low indentation rolling resistance, preventing additional drag on the main drive motor.
From an engineering perspective, efficiency is closely tied to material carryback control. Fine, moist particulates often adhere to the return strand of smooth steel rollers, building up irregular layers that cause the belt to drift off-center. Rubber-coated and rubber-disc return rollers flex continuously under belt tension, fracturing sticky material crusts and shedding accumulated debris before it can alter the roller's concentricity. This self-cleaning mechanism reduces the need for manual scraper adjustments, lowers cleaning labor costs, and prevents edge damage caused by off-center belt tracking.
Efficiency Metric
Standard Steel System Impact
Rubber Conveyor Roller System Impact
Unscheduled Downtime
High due to bearing shell lockup and belt punctures
Significantly reduced via shock absorption and self-cleaning
Drive Motor Load
Increases as material builds up unevenly on shell
Stabilized through consistent concentricity and low drag
Belt Lifespan Extension
Baseline performance (1.0x standard life)
Extended by 1.5x to 2.2x due to cover protection
Acoustic Output
78 dB(A) to 92 dB(A) continuous metal resonance
62 dB(A) to 74 dB(A) via elastomeric dampening
The Core Advantages of Rubber Conveyor Rollers
The primary core advantages of rubber conveyor rollers include exceptional shock absorption at transfer points, superior belt cover protection, effective self-cleaning capabilities, and substantial ambient noise reduction.
Rubber conveyor rollers offer a significant mechanical upgrade over unlined steel alternatives due to the physical properties of elastomers. Rubber-covered or rubber-disc variants provide enhanced protection for the conveyor belt, reduce noise, and improve performance in harsh operating conditions. In severe bulk handling operations, material drop heights can exceed three meters, generating massive localized impact energy. Rubber impact rollers utilize resilient elastomeric rings mounted on heavy-duty steel cores to deform under impact, dispersing kinetic energy sideways through the elastomer rather than transferring it into the belt carcass or support frame.
Preventing physical belt cover damage is a key goal for conveyor maintenance managers. Replacing a steel roller costs very little compared to replacing a multi-ply steel-cord or heavy-duty fabric belt, which can cost tens of thousands of dollars. When sharp, jagged rocks get caught between rigid steel rollers and the moving belt, they can easily pierce or slice the rubber belt cover. Replacing those steel rollers with elastomeric rubber conveyor rollers creates a forgiving contact surface that yields slightly under localized pressure, helping to prevent belt punctures and longitudinal tears.
Operational safety regulations, such as those set by OSHA and EU directive standards, strictly enforce workplace noise limits in heavy industrial sites. Metal-on-metal sliding contact and structural resonance inside hollow steel rollers can create ambient noise levels well over 85 decibels. Wrapping the roller shell in vulcanized rubber or using specialized rubber discs creates an acoustic break that dampens internal shell resonance and softens the mechanical impact of the belt spliced seams running over the idler face.
1. High Shock Absorption and Energy Dissipation
Rubber impact idlers are specifically designed with independent elastomeric rings separated by precise air gaps. These gaps allow the rubber rings to expand sideways when hit by heavy material drops, turning sharp, localized impact energy into manageable radial compression without crushing the belt body.
2. Prevention of Material Carryback and Accretion

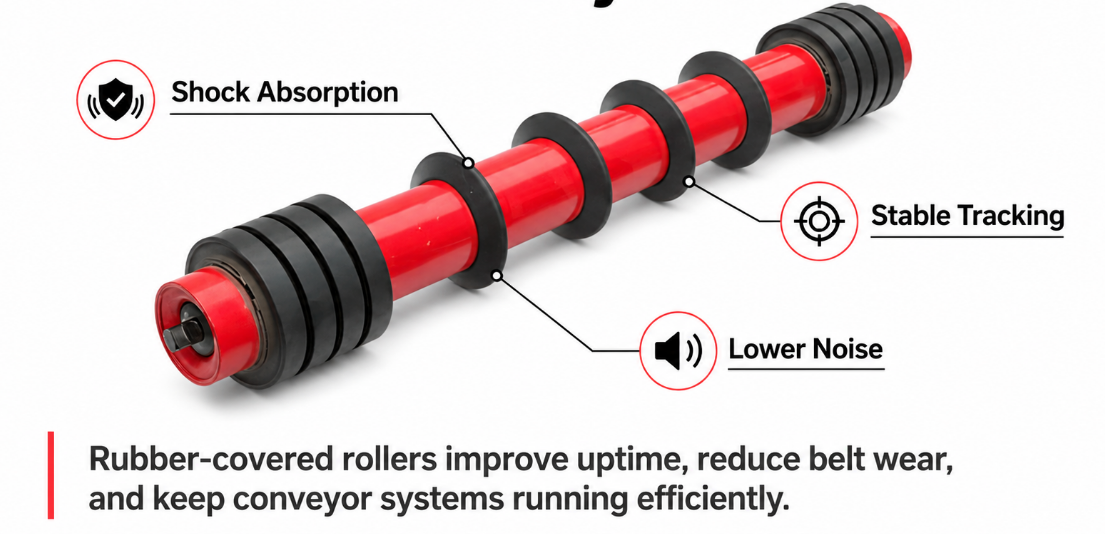

Rubber disc return rollers feature flexible elastomeric profiles that contact the belt cover across smaller, concentrated surface areas. As the belt moves over these discs, the rubber continuously flexes, breaking up wet, sticky, or clay-like materials and dropping them away before they can build up on the roller face.
3. Improved Friction and Belt Tracking Stability
Drive-assist and lagging rubber rollers provide a higher coefficient of friction than raw steel surfaces. This increased grip prevents belt slippage in wet or icy conditions, helping maintain consistent belt tracking and preventing costly off-center tracking issues.
Operating Principle: Rubber conveyor rollers work by using viscoelastic energy absorption. When hit by dynamic impacts, the long-chain polymer molecules within the vulcanized rubber flex and temporarily deform. This movement converts high peak mechanical impact energy into low-level thermal energy, protecting the internal steel core, bearings, and conveyor belt from sharp load spikes.
Material Selection for Rubber Conveyor Rollers
Proper material selection for rubber conveyor rollers depends on matching specific elastomeric formulations, such as NR, SBR, NBR, EPDM, or Neoprene, to operational heat, oil, chemical, and wear conditions.
Selecting the right rubber compound is crucial to ensuring reliable roller performance in challenging industrial environments. Using the wrong elastomeric formulation can lead to early failure—such as swelling when exposed to oils, cracking from ozone exposure, or rapid abrasive wear in hard rock handling. Material engineers select elastomeric blends by balancing tensile strength, elongation at break, DIN abrasion loss, and durometer hardness (Shore A scale) to meet specific plant operating conditions.
Natural Rubber (NR) remains a widely used compound for heavy-duty primary impact zones and general bulk handling idlers. NR offers exceptional resilience, high tear strength, and low DIN abrasion loss, making it ideal for handling sharp materials like iron ore, copper concentrate, and crushed granite. However, Natural Rubber handles petroleum-based hydrocarbons and high operating temperatures poorly, softening or swelling when exposed to fuels or oils.
For applications involving chemicals, high heat, or oily materials, synthetic elastomers are necessary. Nitrile Butadiene Rubber (NBR) is the preferred choice for oil-resistant application zones, such as handling recycling scrap, oily grain crops, or asphalt additives. Ethylene Propylene Diene Monomer (EPDM) excels in outdoor facilities exposed to high heat, acid, alkali, and intense sunlight, offering exceptional resistance to thermal degradation up to 150°C. Neoprene (CR) provides a balanced mix of oil resistance, flame retardancy, and mechanical strength, making it ideal for underground coal mining operations where flame resistance is required.
Elastomer Type
Hardness (Shore A)
Temp Range (°C)
Abrasion Resistance
Key Industrial Suitability
Natural Rubber (NR)
55 – 70
-40 to +80
Exceptional (< 90 mm³)
Primary mining impact, aggregate, rock handling
Styrene-Butadiene (SBR)
60 – 75
-30 to +90
Very High (< 110 mm³)
General bulk handling, cement plants, sand/gravel
Nitrile Rubber (NBR)
65 – 80
-20 to +110
High (< 130 mm³)
Oily materials, recycled scrap, grain handling
EPDM
60 – 80
-40 to +150
Moderate (< 150 mm³)
High heat ash, acidic chemical plants, outdoor solar exposure
Comparing rubber rollers to steel rollers highlights key differences in impact absorption, belt wear protection, self-cleaning efficiency, and noise reduction, with rubber outperforming steel in demanding conditions.
Industrial conveyor systems have traditionally relied on standard steel rollers due to their simple design and low initial purchase cost. Manufactured from cold-drawn electric resistance welded (ERW) steel pipe, standard steel idlers provide good structural rigidity and high load capacity. However, steel's high modulus of elasticity makes it rigid and unforgiving under dynamic shock loads. When sharp, heavy materials drop directly onto a steel roller face, the impact force concentrates at a single point, often denting the roller shell, damaging internal bearings, or gouging the conveyor belt cover.
Looking at total operating costs over time paints a very different picture. While precision durable rubber conveyor rollers cost more upfront due to specialized elastomeric compounding and vulcanization steps, they significantly cut ongoing operating costs. Steel rollers used in moist, abrasive environments often suffer from rapid shell thinning and sharp edge wear. Once a steel shell wears through, it forms razor-sharp metal edges that can quickly slice expensive conveyor belts. Rubber rollers avoid this failure mode entirely, wearing down smoothly without forming sharp, destructive edges.
Material carryback and adhesion also highlight a major performance difference between steel and rubber rollers. Steel rollers feature a static surface where wet or sticky materials can easily cake and harden over time. This uneven build-up creates an eccentric roller profile that causes belt tracking issues and forces maintenance teams to manually clean the rollers. Rubber rollers—especially rubber disc variants—flex continuously under belt tension, preventing material from building up and keeping the roller running true with minimal manual effort.
Performance Vector
Standard Steel Rollers
Rubber Conveyor Rollers
Impact Resistance
Low; shell dents easily, transferring shock directly to bearings
High; flexible rubber absorbs shock loads and protects core
Belt Cover Wear Rate
Higher due to unyielding metal contact and shell wear rust
Up to 50% lower; forgiving surface minimizes belt cover wear
Material Carryback
Prone to sticky material buildup and uneven surface crusting
Self-cleaning surface flexes to shed sticky accumulated material
Failure Mode
Shell wears into sharp edges that can slice conveyor belts
Smooth, predictable rubber surface wear with no sharp edges
Noise Levels
High noise output from hollow steel shell resonance
Low initial cost, but higher long-term belt repair/maintenance costs
Higher initial cost, but delivers much lower Total Cost of Ownership
Maintenance Tips for Rubber Conveyor Rollers
Proper maintenance for rubber conveyor rollers requires regular visual shell inspections, checking radial runout tolerances, monitoring bearing seals, and replacing worn rubber discs before the core is exposed.
To maximize the operational lifespan of heavy-duty conveyances, maintenance teams should shift from reactive repairs to proactive preventive inspections. While rubber rollers require significantly less ongoing maintenance than plain steel variants, they still operate under challenging load cycles, thermal variation, and abrasive conditions. Establishing systematic inspection routines helps maintenance engineers detect early rubber wear, bearing degradation, or alignment issues long before they cause unexpected system shutdowns.
Regular visual inspections should focus on evaluating rubber shell wear and identifying uneven wear patterns. In rubber impact idlers, maintenance workers should inspect the elastomeric rings for deep gouges, oil swelling, or structural cracking caused by severe UV exposure. If ring thickness wears down by more than 50% of its original measurement, the roller should be scheduled for replacement during the next planned maintenance window to ensure continued shock protection for the conveyor belt carcass.
Monitoring total indicator reading (TIR) and shaft alignment is essential for keeping high-speed conveyor belts running smoothly. Inspecting technician teams should routinely measure radial runout using dial indicator gauges during plant turnarounds. A high TIR value indicates internal shaft bending, uneven rubber wear, or bearing degradation. Operating an eccentric roller at high speeds introduces damaging dynamic vibrations that can destroy adjacent idler bearings, loosen frame mounting hardware, and lead to premature belt edge wear.
1. Systematic Bearing Seal Lubrication and Monitoring
Ensure that bearing housings feature multi-stage labyrinth seals packed with high-quality lithium-complex synthetic grease. In wet, slurry-heavy washing environments, re-grease bearings based on recommended run-time hours to flush out moisture and fine particulates, preventing bearing contamination.
2. Shell Wear Tracking and Rubber Ring Inspection
Measure rubber ring and sleeve outer diameters across the entire face of the roller using ultrasonic thickness gauges or precision calipers. Uneven, localized wear patterns usually indicate off-center material loading or improper belt tracking that needs correction upstream.
3. Shaft Alignment and Frame Locking Verification
Verify that idler shafts rest squarely in the support frame slot drop-in brackets and remain firmly secured with locking clips. Loose shaft fits allow the inner shaft to rotate within the bracket, damaging the shaft ends and skewing the roller out of perpendicular alignment with the belt center line.
Maintenance Caution: Never allow rubber disc return rollers to operate once the outer rubber discs have worn completely down to the underlying steel tube core. Operating an exposed steel core against the belt causes aggressive localized belt cover wear, removes the self-cleaning benefit, and leads to rapid, uncontrolled belt edge mis-tracking.
Technical Specifications for Rubber Conveyor Rollers
Key technical specifications for rubber conveyor rollers include precise outer shell diameters, heavy-duty wall thicknesses, multi-stage labyrinth bearing seals, strict TIR tolerances, and dynamic balance ratings.
When engineering bulk material handling systems, specifying accurate technical dimensions and performance tolerances is essential to ensure seamless field integration and long-term operating life. Component engineers select precise roller dimensions based on required hourly material throughput, belt speed, structural troughing angles, and peak lump sizes. Choosing undersized idler shafts or thin-walled tubing can cause shaft flexing and premature bearing failure when operating under heavy load conditions.
The internal structural core of a high quality rubber roller starts with a heavy-duty cold-drawn ERW steel pipe wrapped in a hot-vulcanized seamless rubber cover or fitted with high-density molded rubber rings. High-grade roller designs feature precision-bored housing ends welded automatically to the inner pipe core, ensuring concentric alignment between the bearing seats and the roller shaft. Precision deep-groove ball bearings (such as 6204, 6306, or 6308 series) are selected based on calculated C0 static and C dynamic load capacities to deliver an L10h bearing fatigue life exceeding 50,000 continuous operating hours.
To prevent fine dust, water, and abrasive slurries from contaminating internal components, advanced industrial rubber conveyor idlers utilize multi-stage labyrinth sealing systems. A typical high-performance seal assembly combines an outer dust cap, a primary flanged contact seal, and a three-piece nylon or POM inner labyrinth seal packed with water-resistant grease. This protective barrier seals the bearing chamber from fine particulates and water ingress, even when operating in harsh slurry or marine environments.
Engineering Parameter
Standard Metric Specification Range
Heavy-Duty Industrial Specification Range
Outer Diameter (OD)
Ø89 mm, Ø108 mm, Ø133 mm
Ø159 mm, Ø194 mm, Ø219 mm
Rubber Lagging/Disc Thickness
8 mm – 12 mm hot vulcanized cover
15 mm – 35 mm molded heavy rings
Shaft Diameter Options
Ø20 mm, Ø25 mm, Ø30 mm
Ø35 mm, Ø40 mm, Ø50 mm precision steel
Bearing Types Standard
6204-2RS, 6205-2RS, 6305-2RS
6306-2RS, 6308-2RS, 6310 C3 clearance
Total Indicator Reading (TIR)
≤ 0.5 mm at shell center
≤ 0.3 mm precision ground tolerance
Dynamic Balance Rating
ISO 1940 Grade G16 standard speed
ISO 1940 Grade G6.3 high-speed overland
Sealing Architecture
Dual-lip contact seal + single labyrinth
Multi-stage nylon 66 labyrinth + dust cap
Industry Applications: Where Rubber Rollers Excel
Rubber conveyor rollers excel in demanding industrial applications, including heavy mining, aggregate production, port loading terminals, chemical processing, and recycling operations.
The versatility of elastomeric compounds makes rubber conveyor rollers essential across a wide range of continuous bulk material handling industries. Every industrial sector presents unique operating challenges—from severe material impact in open-pit mining to high humidity and corrosive salt spray at marine loading docks. Engineering the roller's rubber formulation, disc geometry, and internal bearing seals to meet specific industry demands ensures high system reliability and long component service life.
In heavy mining and quarrying operations, conveying systems must handle thousands of tons of sharp, heavy rock every hour. Discharge transfer points exposed to large lump drops require rubber impact rollers capable of absorbing high kinetic energy without cracking. European mining operators frequently specify thick, hot-vulcanized Natural Rubber sleeves with a 65 Shore A hardness for primary crusher discharge zones, finding that this configuration provides the ideal balance of impact absorption, tear resistance, and wear life.
In port shiploading, fertilizer plants, and chemical manufacturing, conveyors often operate in moist, corrosive environments that quickly rust standard steel rollers. Exposed steel idlers corrode rapidly in these conditions, forming sharp, rough surfaces that damage expensive conveyor belts. High-performance rubber-covered rollers protect the internal steel pipe from chemical contact, while specialized EPDM or Neoprene compounds resist degradation from acids, salts, and chemical fertilizers, ensuring smooth, reliable performance.
1. Heavy Hard-Rock Mining and Extractives
Open-pit copper, iron ore, and gold mines use heavy-duty rubber impact idlers under feeder transfer hoppers. The resilient rubber construction cushions heavy rock drops, preventing belt punctures, protecting structural support frames, and extending conveyor belt service life.
2. Marine Bulk Terminals and Shiploading Facilities
Port facilities handling coal, iron ore, and dry chemicals rely on rubber-coated and rubber-disc return idlers to withstand harsh salt marine atmospheres. The protective rubber coating prevents core corrosion, while self-cleaning discs prevent damp, sticky material from building up on return strands.
3. Cement Manufacturing and Aggregate Processing
Crushed stone, sand, and clinker production plants use rubber return discs to prevent abrasive slurry buildup. The continuous flexing action of the rubber discs sheds fine sticky dust, keeping the return belt running straight and reducing manual cleaning costs.
4. Recycling, Waste Management, and Scrap Sorting
Facilities sorting municipal solid waste, scrap metal, and industrial refuse use oil-resistant Nitrile (NBR) rubber rollers to handle oily scrap, glass shards, and mixed debris without swelling or suffering premature abrasive cover wear.
Technical Summary: Installing high quality rubber conveyor rollers is an effective engineering solution to minimize unscheduled belt conveyor maintenance, lower structural acoustic noise, prevent belt cover damage, and improve long-term material handling efficiency in demanding industrial environments.
