What is the difference between an idler and a roller?

The fundamental difference between an idler and a roller is that a Conveyor Belt Roller is the individual cylindrical component that rotates on a shaft, whereas an idler (or idler set) is the complete structural assembly consisting of one or more rollers mounted onto a rigid supporting frame, designed to support, shape, and guide the belt.

Table of Contents

• Structural Definition and Fundamental Mechanical Architecture

• Operational Functions and Load Distribution Dynamics

• Key Component Breakdown and Technical Specifications

• Classification by Application: Carrying, Return, and Impact Configurations

• Material Engineering and Surface Coatings for Extreme Environments

• Selection Criteria: Engineering Parameters for System Optimization

Structural Definition and Fundamental Mechanical Architecture

A Conveyor Belt Roller is an individual cylindrical shell enclosing internal bearings, stationary inner shafts, and protective seal arrangements. It serves as the primary rotating interface contacting the moving belt surface. When specifying replacement components, engineers evaluate the Conveyor Belt Roller as an isolated mechanical unit based on tube diameter, wall thickness, bearing series, and shaft end dimensions.

Conversely, an idler represents a complete structural framework that houses one or several Conveyor Belt Roller units. The frame holds the rollers at precise geometry, such as troughed angles of twenty, thirty-five, or forty-five degrees. Without the rigid steel support frame, an individual Conveyor Belt Roller cannot maintain belt troughing profile or remain anchored to the conveyor stringer structure.

When designing heavy bulk handling systems, specifying high-load steel assemblies like heavy-duty conveyor idlers ensures structural rigidity across wide belt spans under severe material loading.

Working Principle: The Conveyor Belt Roller converts linear friction from the moving belt into smooth rotational torque, utilizing precision deep-groove or tapered roller bearings isolated by multi-stage labyrinth seals to minimize rotational resistance and protect internal raceways from fine particulate contamination.

Operational Functions and Load Distribution Dynamics

The dynamic function of an isolated Conveyor Belt Roller centers on minimizing frictional drag and supporting localized belt weight. The roller shell must sustain circumferential bending moments created by continuous belt contact. Lower rotational resistance directly reduces total drive motor power consumption across long-distance bulk conveying systems.

An idler assembly manages localized weight distribution, belt shaping, and tracking stability across the full conveyor profile. By positioning multiple Conveyor Belt Roller units in offset or in-line arrangements, the idler shapes the flexible belt into a continuous trough, maximizing cross-sectional load carrying capacity and preventing material spillage at high belt speeds.

In heavy-duty applications where material drop height creates extreme kinetic impact, reinforced idler frames are combined with specialized rubber or impact ring Conveyor Belt Roller variants to absorb energy and protect belt structural plies.

Maintenance Tip: Regularly inspect individual Conveyor Belt Roller rotation during belt operation; a seized roller creates localized friction that can score the belt cover material, whereas distorted idler framing causes systemic belt tracking misalignment across multiple conveyor bays.

Key Component Breakdown and Technical Specifications

A high-performance Conveyor Belt Roller incorporates multiple precision engineered components designed to operate continuously under harsh industrial conditions. Shell tubes are typically manufactured from ERW steel pipe or seamless steel tubing, machined precisely to ensure concentricity and minimize balance eccentricity during high-speed rotation.

The internal architecture of a standard Conveyor Belt Roller consists of a solid cold-drawn steel shaft, heavy-duty ball or roller bearings, pressed steel or cast bearing housings, and multi-chamber non-contact labyrinth seals fillable with synthetic grease barriers to prevent moisture entering internal cavities.

For extreme environments involving high humidity, chemical exposure, or sticky slurries, installing advanced non-metallic options like corrosion-resistant ceramic conveyor rollers prevents material buildup and shell degradation while maintaining mechanical shaft integrity.

Classification by Application: Carrying, Return, and Impact Configurations

1. Carrying Idlers and Rollers Carrying assemblies support the loaded side of the conveyor belt. They typically utilize a three-roll troughed setup, positioning a center horizontal Conveyor Belt Roller flanked by two wing rollers angled at thirty-five or forty-five degrees to maximize volumetric loading.

2. Return Idlers and Rollers Return units support the empty belt returning along the underside framework. These setups generally feature a single flat Conveyor Belt Roller spanning the full width, or a V-return two-roll configuration designed to enhance tracking stability along long return runs.

3. Impact Idlers and Rollers Located directly under loading chutes and transfer points, impact assemblies utilize a reinforced steel frame fitted with a heavy-duty Conveyor Belt Roller lined with shock-absorbing rubber rings to cushion falling material and prevent carcass puncture.

To prevent belt deviation along extended conveying routes, specialized self-aligning conveyor belt roller assemblies automatically pivot in response to off-center belt tracking forces, redirecting the belt back to its central path.

Operating Mechanics: Self-aligning idler mechanisms utilize guide rollers attached to a central pivot frame; when the belt moves off-center, it pushes against the guide roller, creating a rotational moment that swings the main Conveyor Belt Roller set to steer the belt back into central alignment.

Material Engineering and Surface Coatings for Extreme Environments

Selecting the appropriate shell material for an individual Conveyor Belt Roller depends entirely on operating conditions, material abrasiveness, temperature ranges, and chemical exposure. While standard steel shells offer reliable performance for general aggregate applications, severe environments demand specialized metallurgical or polymer solutions.

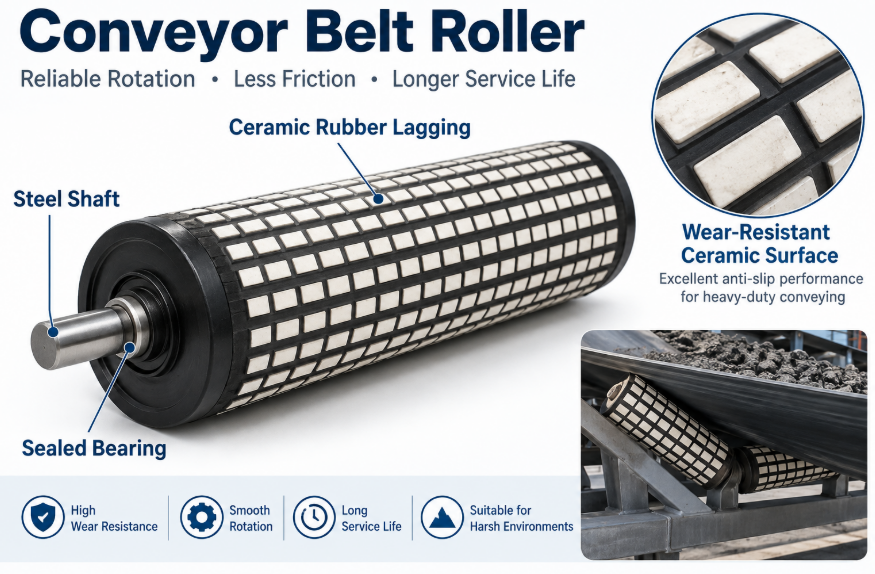

Ceramic-coated and full ceramic Conveyor Belt Roller units provide exceptional wear resistance when handling abrasive ores, quartz, or sticky coal fines. The hard ceramic surface resists grooving, while high surface smoothness reduces material adhesion and prevents continuous belt cover wear.

Rubber-disc and polyurethane coated Conveyor Belt Roller variants excel in wet, sticky, or corrosive return-side applications where material carryback rapidly accumulates on standard steel shells, leading to severe belt mistracking and continuous maintenance intervention.

Selection Criteria: Engineering Parameters for System Optimization

1. Calculate Expected Radial Loads Determining total load per Conveyor Belt Roller requires evaluating belt weight, material bulk density, lump size, and idler spacing. Ensure maximum dynamic loads do not exceed bearing L10 life calculations under continuous operation.

2. Evaluate Environmental Exposure Specify seal types based on ambient conditions. Fine mineral dust requires multi-stage labyrinth seals, while sub-surface mining or wet washing installations necessitate contacting lip seals combined with synthetic grease barriers.

3. Verify Shell Wall Thickness and Diameter Select larger diameter Conveyor Belt Roller units for high belt speeds to reduce rotational speeds, lower bearing wear, and extend operating life. Ensure shell wall thickness provides adequate safety margins against deflection.

4. Validate Troughing and Frame Rigidity Ensure the supporting idler frame maintains strict structural tolerances under full load conditions. Frame deflection can distort roller alignment, causing premature bearing failure and severe belt edge damage.
