What Is an Conveyor Idler Roller?

A conveyor idler roller is a cylindrical mechanical component designed to support, guide, and shape a continuous conveyor belt roller assembly while minimizing rotational friction, power consumption, and structural stress across heavy duty industrial material handling applications.

What Is a Conveyor Idler Roller and How Does It Work

A conveyor belt roller serves as the core physical support structure for continuous belt conveyor systems used across mining, quarrying, port terminal, and cement manufacturing sectors. These un-driven cylindrical components rotate smoothly on internal bearings as the driven conveyor belt roller travels over them, preventing sag, maintaining proper belt tension, and reducing total system resistance.

Without a well engineered conveyor belt roller setup, high speed bulk material transport lines would suffer from excessive friction, severe belt spillage, and catastrophic drive motor overloads. By absorbing dynamic impacts at loading points and providing a stable surface along both carrying and return strands, every conveyor belt roller maintains structural alignment and operational safety across thousands of running hours.

Modern industrial installations require each conveyor belt roller to maintain low total indicator runout (TIR) and minimal rotational resistance. High quality balance minimizes vibration, extends bearing service life, and lowers electrical energy consumption across long distance overland transport routes.

Structural Performance Metrics

1. Low rotational resistance minimizes overall drive power consumption.

2. Precision tube concentricity reduces high speed system vibration.

3. Reinforced bearing housings prevent structural deflection under load.

Operational Mechanics: The rotational performance of a conveyor belt roller depends on low startup torque and continuous dynamic balance, ensuring minimal frictional drag against the rubber cover of the belt during full load conditions.

Key Structural Components and Engineering Specifications

The internal structure of an industrial conveyor belt roller is designed to isolate sensitive moving elements from abrasive dust, moisture, and extreme mechanical stress. Every precision component plays a vital role in preventing mechanical failure under severe outdoor conditions.

Inside a heavy duty conveyor belt roller, precision deep groove ball bearings or spherical roller bearings sit within stamped or cast steel bearing housings welded to seamless steel tubes. Multi-stage labyrinth seal arrangements surround the bearings to lock in synthetic grease and block fine particle ingress.

The interaction between the solid central shaft and internal bearing seats determines total radial load capacity. Precision machining guarantees perfect alignment, preventing angular offset and premature fatigue.

High performance operations rely on heavy duty idlers to manage extreme tonnage demands without shell deformation or shaft bending.

Seal Integrity Principle: A multi-chamber labyrinth seal creates a convoluted tortuous path packed with synthetic lithium grease, establishing an impenetrable barrier against microscopic abrasive dust and high pressure water spray.

Major Types of Conveyor Idler Rollers in Industrial Systems

Industrial conveyor systems deploy specialized variations of the conveyor belt roller across distinct functional zones of the handling line. Selecting the right design for each location optimizes material flow and prevents belt damage.

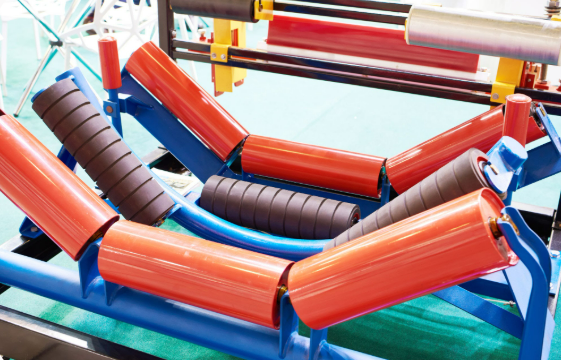

Troughing idler sets usually feature three inline conveyor belt roller units arranged in a trough frame at angles ranging from 20 to 45 degrees. These sets shape the flat belt into a concave profile, dramatically increasing load carrying volume while suppressing side spillage along intermediate transport zones.

Return idlers support the empty return strand of the belt underneath the structural frame. These units are typically flat single cylinder rollers or rubber disc configurations designed to shed sticky material build up during return travel.

Essential Idler Configurations

1. Troughing idlers shape the carrying strand to maximize volumetric capacity.

2. Impact idlers absorb shock loads directly beneath material transfer chutes.

3. Self-aligning idlers correct belt wandering and prevent edge damage.

Impact idlers feature thick elastomer or rubber rings installed over a reinforced steel core. Placed directly under transfer points, these specialized conveyor belt roller sets absorb heavy kinetic impacts from falling ore, coal, or crushed rock, preventing belt carcass punctures.

Impact Zone Tip: Always position impact idler sets with closer spacing beneath feed hoppers to eliminate sag between rollers and prevent high velocity material from shredding the top rubber belt cover.

Material Options and Coating Technologies for Severe Applications

Selecting appropriate shell materials and surface coatings for a conveyor belt roller directly determines service longevity in corrosive, wet, or highly abrasive environments. Standard steel rollers may experience chemical pitting, rust, or severe material carryback under demanding conditions.

High Density Polyethylene (HDPE) and composite shells offer lightweight, corrosion resistant alternatives to traditional carbon steel tubes. HDPE surfaces resist material adhesion, lowering noise levels and preventing sharp jagged edges from cutting the belt if a bearing fails.

Rubber disc and spiral rubber coatings are engineered for sticky, wet applications where clay, limestone, or wet coal adheres to the cylinder. The flexing movement of rubber rings constantly breaks away material build up during rotation.

For environments subject to severe abrasion and aggressive slurry wear, installing a belt conveyor ceramic roller provides a hard surface layer that resists abrasive wear and extends service life well beyond standard steel options.

Key Material Benefits

1. Ceramic surfaces resist severe sliding abrasion from quartz and metallic ores.

2. HDPE shells eliminate sharp rust edges that cause longitudinal belt tears.

3. Rubber disc designs break up wet sticky material to maintain tracking line.

Wear Resistance Dynamics: Ceramic sleeve technology embeds high purity alumina tiles into a durable substrate, creating a smooth surface that withstands abrasive wear while keeping friction levels low against the belt carcass.

Critical Selection Criteria for Bulk Material Handling Operations

Engineers must evaluate several operational parameters when specifying conveyor belt roller assemblies for new or upgraded handling lines. Incorrect sizing leads to premature bearing wear, excessive shaft bending, and frame distortion.

Maximum belt speed, material bulk density, lump size, and total hourly throughput dictate required roller diameters and bearing dynamic ratings. Higher conveyor speeds demand larger diameter shells to lower rotational RPM, reduce bearing heat, and prolong lubricant life.

Environmental conditions such as ambient humidity, saltwater exposure, dust concentration, and operating temperatures determine seal designs and shell wall thickness requirements.

Selection Checklist

1. Calculate maximum combined load including belt weight and peak material throughput.

2. Select roller diameter based on belt speed to keep bearing RPM within safe limits.

3. Match shell material and wall thickness to material abrasiveness and lump size.

4. Verify environmental protection requirements for bearing seals and grease grade.

When dealing with high speed overland conveyors carrying coarse ore, engineering specifications prioritize heavy duty frame construction and precision ground heavy duty idlers capable of handling severe radial loads without deflection.

European Market Preferences: European industrial operators consistently favor energy efficient, low noise composite and ceramic conveyor belt roller designs with C3 precision clearance bearings to lower power usage and meet strict environmental noise regulations.

Maintenance Strategies and Troubleshooting Common Idler Failure Modes

Proactive inspection routines for every conveyor belt roller across a material transport route prevent unscheduled down time and high replacement costs. Detecting early warning signs helps maintenance teams replace worn components before major system damage occurs.

Bearing seizure is a common failure mode, typically caused by seal contamination, lubricant washout, or excessive radial overloading. A seized roller acts as a stationary brake, causing the moving belt to rub against the shell, generating friction heat and wearing flat spots into the tube.

Shell shell-through occurs when abrasive bulk materials wear away the metal cylinder until sharp, knife-like edges form. These jagged metal edges can slice through expensive rubber belts in minutes.

Maintenance Steps

1. Perform thermal imaging scans to spot overheating bearings along the line.

2. Inspect return and troughing sets for material buildup and shell wear.

3. Check alignment frames to ensure rollers sit perpendicular to belt centerlines.

4. Replace noisy or vibrating rollers immediately during scheduled outages.

Preventative Maintenance Routine: Establish scheduled acoustic listening checks and infrared thermal scans along the entire conveyor frame length; elevated bearing temperatures or high frequency noise patterns indicate imminent bearing failure before shell seizure occurs.

Summary of Industrial Conveyor Idler Roller Best Practices

Optimizing conveyor belt roller selection and maintenance directly improves material transport reliability while lowering operating costs. Choosing the right roller materials, bearing specifications, and seal arrangements ensures dependable system performance in harsh industrial environments.

Investing in high quality components like heavy duty idlers, HDPE shells, and specialized ceramic roller surfaces protects belt integrity, cuts power consumption, and minimizes unscheduled downtime across demanding bulk handling operations.
