Belt Conveyor Idler commonly used in Conveyor System

As an industrial conveying engineer with over 15 years of field experience in heavy bulk material handling, I can state unequivocally that a belt conveyor idler is the central structural component engineered to support the load carrying surface, maintain proper belt tracking, absorb kinetic impact, and minimize rotational drag in a continuous conveyor system.

Fundamentals of Belt Conveyor Roller Dynamics

In high-tonnage mining, quarrying, and bulk port operations, the conveyor belt roller serves as the fundamental workhorse of continuous transport infrastructure. A standard conveyor belt roller assembly consists of a central cold-drawn solid steel shaft, precision deep groove ball bearings or tapered roller bearings, multi-stage inner and outer seal arrangements, and a heavy-gauge cylindrical steel shell. Operating continuously under extreme environmental conditions, every conveyor belt roller must maintain an exceptionally low Total Indicator Reading (TIR) runout to prevent structural vibration, premature bearing failure, and localized belt fatigue. When calculating the total mechanical load of a conveying system, the rotational drag of hundreds of individual conveyor belt roller units directly dictates the overall power requirement of the main drive motor.

From an engineering perspective, minimizing Total Indicator Reading (TIR) runout across every conveyor belt roller is paramount for continuous operation. Excessive runout creates harmonic vibrations that ripple through the conveyor truss, causing dynamic load spikes that rupture bearing races and accelerate shell degradation. High-quality precision manufacturing utilizes seamless Q235 carbon steel tubing coupled with automated double-ended boring and submerged arc welding. This structural rigidity guarantees that under maximum rated tonnage, shaft deflection remains well below critical thresholds, maintaining exact alignment within the bearing cavities. Furthermore, the selection of the correct conveyor belt roller diameter directly influences rotational velocity; larger diameter rollers rotate at reduced RPMs, which significantly extends grease life and delays the onset of rolling fatigue.

When evaluating bulk material transport efficiency, our European operations clients frequently prioritize low rotational resistance and energy-efficient bearing design. Industrial tests demonstrate that switching from standard pressed-steel housing designs to precision-machined CNC bearing housings can reduce overall belt breakaway torque by up to 18 percent. This drop in friction reduces kWh consumption across long-distance overland conveyors while lowering operating temperatures inside the bearing housing. Every high-performance conveyor belt roller should be engineered with an integrated grease-retaining cap and anti-rust lithium soap grease to resist thermal breakdown under continuous operation.

Operational Efficiency Tip: Inspect conveyor belt roller noise emissions using acoustic monitoring tools during routine belt runs; high-frequency squealing indicates seal failure or grease oxidation, requiring immediate roller replacement to prevent shell freeze and subsequent belt gouging.

Carrying Troughing Idlers and Load Distribution

Carrying troughing idlers form the primary support network along the material-carrying strand of the conveyor circuit. These assemblies typically feature a three-roller or five-roller configuration mounted on a rigid, structural steel frame. The central horizontal roller carries the bulk of the material mass, while the angled wing rollers—set at standard trough angles of 20 degrees, 35 degrees, or 45 degrees—curve the belt into a concave profile. This troughing action vastly expands the cross-sectional area of the bulk material payload, maximizing volume capacity while preventing side spillage during high-speed transit.

The choice of trough angle depends entirely on material surcharge angles, belt flexibility, and target throughput. A 35-degree troughing set represents the industry standard for medium-to-high density ores, balancing high volume capacity with manageable stress on the belt's outer transition zones. However, when handling ultra-dense minerals such as iron ore or copper concentrate, industrial operators often deploy specialized Heavy-duty Idlers engineered with reinforced cross-members and heavy-wall steel tubing. These heavy-duty assemblies prevent frame twisting and shaft flexure under extreme point loading, ensuring that the wing and center rollers maintain absolute concentricity.

From our engineering team's perspective, European market operators consistently request 35-degree inline troughing sets equipped with quick-release side brackets. This design preference stems from strict maintenance time limits during planned plant shutdowns; quick-release brackets allow technicians to swap out a worn conveyor belt roller within minutes without removing the main frame from the conveyor structure. Furthermore, maintaining exact transition distances between the head/tail pulleys and the adjacent troughing sets prevents localized stress concentration on the belt edges, eliminating premature ply separation in high-tension steel-cord belts.

Impact Idlers for Shock Absorption at Loading Zones

Transfer points and loading chutes subject the conveyor belt and supporting structure to severe dynamic impact forces. As heavy, sharp-edged lump material cascades down loading hoppers, the kinetic energy transferred upon impact can easily puncture the rubber belt cover or crush standard steel rollers. Impact idlers are explicitly engineered to eliminate this vulnerability. Positioned directly beneath transfer chutes, these assemblies feature a series of high-resilience rubber or polyurethane discs mounted onto a heavy-duty steel core shaft, providing continuous cushion across the entire load zone.

The rubber discs are separated by precise air gaps or elastomeric spacers, allowing individual discs to deflect independently under point impact. This elastomeric deformation absorbs peak kinetic energy, dissipating kinetic shocks that would otherwise be transmitted directly into the bearing races and structural support trusses. In severe applications involving fall heights exceeding three meters or material lump sizes above 200 mm, dual-channel reinforced steel frames with oversized base mounting plates are mandatory to prevent structural buckling.

When custom-designing transfer zones for hard-rock mining facilities, our engineering group always specifies close idler spacing—typically 300 mm to 500 mm center-to-center—directly under the skirtboards. This tight spacing prevents belt sag between adjacent roller sets. Eliminating sag is vital because belt bowing under a loading chute creates openings where fine particulates escape, jamming between the belt edge and skirt rubber to cause catastrophic longitudinal belt scoring.

Return Belt Support and Material Carryback Management

While the carrying strand transports the primary load, the return strand must securely guide the empty belt back to the tail pulley. Return idlers carry a lighter static load consisting only of the empty belt weight, but they present unique operational challenges due to material carryback. Fine, sticky particulates that adhere to the top cover during discharge pass directly over the return rollers. If standard flat steel rollers are used in sticky environments, moist fines build up unevenly on the steel shell, creating an artificial, eccentric roller profile that causes continuous, severe belt mistracking.

To solve carryback accumulation, bulk handling engineers deploy specialized return configurations, such as rubber disc return rollers, spiral steel rollers, and V-return idler sets. Rubber disc return rollers contact the belt only along narrow elastomeric rings, creating open spaces where falling material drops clear of the roller shell. For long-distance overland conveyors operating under high belt tension, 10-degree or 15-degree V-return idlers are widely preferred. By forming a shallow trough on the return strand, V-return sets deliver superior tracking stability, locking the return belt into a central path even under crosswinds or uneven belt splices.

Our industrial field experience shows that power generation plants handling high-moisture bituminous coal experience severe carryback buildup on standard steel return rollers. Upgrading return runs to spiral self-cleaning rollers reduces belt mistracking incidents by up to 75 percent. The helical geometry creates a continuous outward wiping motion as the roller rotates, shedding tacky fines before they harden into abrasive crusts that destroy the belt's bottom cover.

Advanced Self-Aligning and Belt Tracking Idler Systems

Persistent belt mistracking is a primary cause of conveyor downtime, edge damage, and material spillage. Structural misalignment, uneven loading, thermal expansion, and material buildup can all force a belt off its central axis. Self-aligning idlers (also termed training idlers) provide an automated, continuous corrective mechanism. Installed along both carrying and return strands at intervals of 25 to 30 meters, these specialized assemblies pivot dynamically to steer drifting belts back to center without operator intervention.

Standard mechanical self-aligning idlers use an offset pivoting frame equipped with outboard guide rollers. When the belt drifts laterally, its edge contacts the guide roller, exerting a lever force that swivels the main idler frame on a central friction pivot. This angular tilt induces a corrective steering force that drives the belt back toward the center line. For high-speed, heavy-duty mining circuits where mechanical edge contact could damage thin belt covers, advanced hydraulic self-aligning idlers offer a superior solution. Hydraulic tracking systems employ internal fluid pressure cylinders triggered by subtle position sensors, smoothly reorienting the roller frame with high corrective force and zero edge wear.

Why do engineering teams favor hydraulic self-aligning idlers for heavy mining installations? The primary reason is that extreme belt speed—often exceeding 5.0 meters per second—causes conventional mechanical guide rollers to wear down rapidly or gouge high-tensile belt edges upon contact. Hydraulic alignment systems generate massive alignment torque internally once rotation begins, smoothly pushing heavy steel-cord belts back onto the center line even under severe off-center load conditions.

Specialized Ceramic and Corrosion-Resistant Conveyor Belt Roller Technology

In hyper-abrasive environments, such as iron ore processing, gold leaching, chemical fertilizer manufacturing, and coal preparation, standard carbon steel idler shells suffer rapid abrasive wear and chemical corrosion. Acidic slurry or severe quartz grit can wear through a standard steel tube in months, creating razor-sharp shell edges that slice through expensive conveyor belts. To survive these brutal conditions, advanced bulk processing operations rely on specialized roller materials, particularly high-alumina ceramic and engineered polymer idlers.

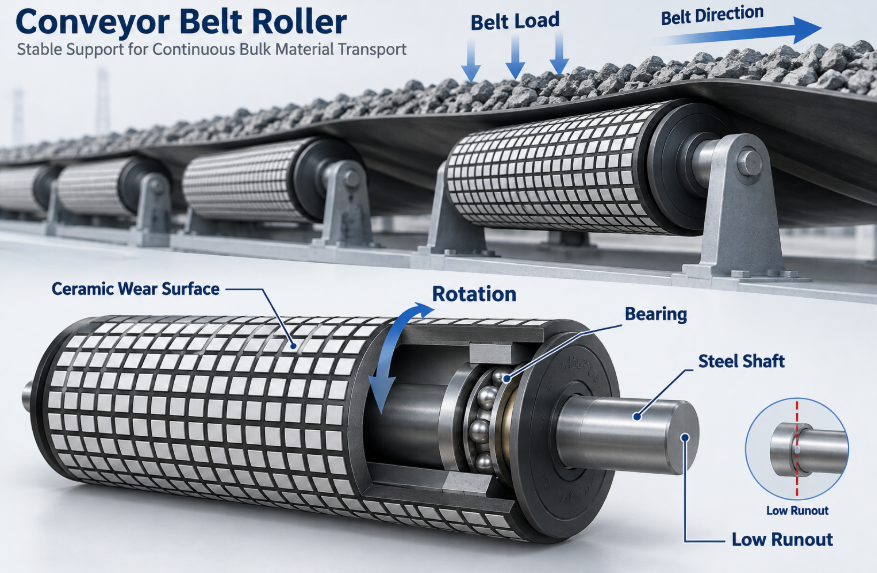

A specialized belt conveyor ceramic roller is built around a heavy-duty steel core coated with or enclosed in high-grade alumina ceramic. The ceramic layer provides near-diamond hardness, offering extreme resistance to sliding abrasion and chemical attack. The smooth, non-porous ceramic surface prevents wet material from sticking, drastically reducing friction and operational noise. For applications requiring lightweight components, Ultra-High-Molecular-Weight Polyethylene (UHMW-PE) and polyurethane idlers offer durable, corrosion-resistant alternatives that resist chemical oxidation and dampen operational noise in enclosed processing plants.

Our engineering evaluations show that Chilean and Australian mining clients operating in wet copper slurry environments achieve up to four times longer service life when replacing standard steel return rollers with ceramic-coated models. Although ceramic rollers carry a higher initial investment, the elimination of premature belt replacement and unplanned maintenance down-time lowers the Total Cost of Ownership (TCO) across the conveyor's lifecycle.

Engineering Considerations for CEMA Classifications and Bearing Seals

Selecting the right conveyor belt roller requires an engineering evaluation of CEMA (Conveyor Equipment Manufacturers Association) load ratings, belt speed, material bulk density, and environmental contamination. CEMA standards categorize idlers into classes B, C, D, E, and F based on shaft diameter, bearing size, and structural load limits. Correctly matching the CEMA classification ensures the conveyor assembly can withstand operational stresses without suffering fatigue failure.

The service life of any conveyor belt roller depends on its bearing housing seal. Contaminant ingress—specifically fine crystalline silica, iron dust, or water—is the root cause of over 85 percent of premature bearing failures. High-performance idlers feature multi-stage sealing systems that combine outer metal shields, centrifugal flinger designs, grease-filled triple labyrinth channels, and inner lip seals. This multi-barrier construction blocks particulate migration, keeping the synthetic lithium grease pristine throughout the bearing's design life.

When engineering idlers for high-altitude or low-temperature environments, our specialists select C3 internal clearance bearings packed with specialized low-temperature synthetic greases. Standard grease thickens under freezing conditions, significantly increasing cold-start rolling resistance and potentially tripping drive motors. C3 clearance allows for thermal expansion and contraction without binding the rolling elements, ensuring stable rotation from sub-zero winter starts to intense peak summer operations.

Installation, Maintenance Tips, and Operational Best Practices

Proper installation and rigorous preventive maintenance are critical to achieving the multi-year design life of high-efficiency conveyor components. Even the most robust conveyor belt roller will fail prematurely if installed on a twisted framework, subjected to severe angular misalignments, or neglected during operational maintenance.

Installation and Preventive Maintenance Guidelines

1. Precision Frame Alignment: Use optical laser levels or taut string lines along the conveyor stringers to verify that every idler base frame is square, level, and perpendicular to the belt center line within a 1.0 mm tolerance limit.

2. Proper Transition Spacing: Graduate the troughing angles smoothly near the head and tail discharge pulleys using adjustable transition idlers to prevent edge over-tensioning.

3. Regular Thermal Audits: Perform routine infrared thermographic inspections along the carrying and return strands to quickly spot failing bearings operating above 85 degrees Celsius.

4. Visual Inspection for Shell Wear: Monitor shell wall thickness using ultrasonic thickness gauges during scheduled maintenance outages, replacing rollers before the steel shell wears thin and sharp.

5. Skirtboard Clearance Inspection: Ensure flexible rubber skirtboards inside loading zones do not drag directly on the top surface of the impact rollers, which can cause localized friction heat and accelerated shell degradation.

Maintenance Advisory: Never apply re-greasing pressure to sealed-for-life conveyor rollers using high-pressure pneumatic grease guns; excessive pressure will rupture internal labyrinth seals, opening a pathway for dust and moisture ingress that will ruin the bearing within weeks.

Strategic Value of High-Efficiency Conveyor Belt Roller Selection

In modern bulk material handling, the humble conveyor belt roller is far more than a simple structural support—it is a critical driver of total system uptime, energy efficiency, and operational safety. Choosing high-quality idler assemblies engineered for specific material properties and operating conditions yields measurable long-term dividends.

By reducing rotational resistance, preventing catastrophic belt mistracking, and resisting severe abrasive wear, premium conveyor idlers lower kilowatt-hour power consumption, eliminate unplanned maintenance shutdowns, and protect the conveyor belt—the single most expensive asset in any material handling system. Partnering with experienced industrial component manufacturers ensures that your conveying infrastructure operates at peak performance year after year, delivering maximum tonnage at the lowest total operating cost.
