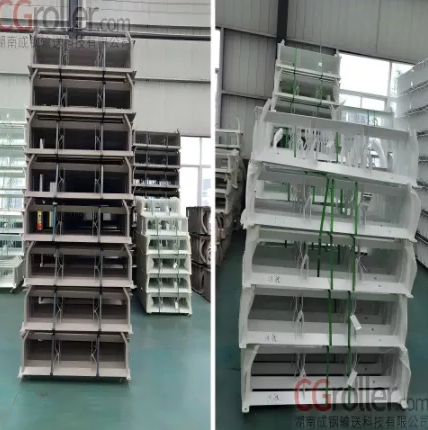

What Material Is Used for Conveyor Frames?

Frame selection determines a conveyor system's structural integrity, operational lifespan, and regulatory compliance. It acts as your primary defense against dynamic loads, environmental degradation, and constant harmonic vibration. Specifying the wrong metal or composite often leads to severe operational failures. You might experience excessive structural deflection under heavy, continuous loads. This structural weakness causes premature corrosion, aggressive wear on moving parts, or costly compliance failures in highly sanitary environments.

This guide objectively evaluates standard industrial materials used to build these critical structures. We map their specific physical properties directly to various harsh operational environments and strict payload requirements. You will learn how to navigate the complex engineering trade-offs between rigidity, modularity, and chemical resistance. Ultimately, we aim to assist your technical procurement teams in making precise, data-backed decisions. By understanding the core metallurgical differences, you can avoid common specification traps and ensure long-term mechanical reliability.

Key Takeaways

• Carbon steel remains the industry standard for 90% of heavy-duty and bulk handling applications due to its high tensile strength and cost-efficiency.

• Extruded aluminum dominates light-to-medium packaging and automation sectors where modularity and frequent line reconfigurations are required.

• Stainless steel (304/316) is a non-negotiable requirement for strict washdown environments, food processing, and pharmaceutical applications.

The Business Impact of Conveyor Frame Materials

Material choice extends far beyond simple aesthetics or initial procurement budgets. It strictly dictates how well your entire facility operates under daily mechanical stress.

Deflection and Belt Tracking

Inadequate frame rigidity under peak loads causes immediate structural deflection. When support beams bend, they alter the precise geometry needed for smooth mechanical operations. This physical distortion leads directly to chronic belt mistracking. As the belt drifts off-center, edge wear accelerates rapidly against the support brackets. You will notice increased friction pulling extra power from the main drive unit. Over time, this constant motor strain leads to dangerous overheating and premature drive system failure. It also causes uncontained material spillage, which creates secondary safety hazards on your facility floor.

Sanitation and Compliance Risks

Food and pharmaceutical production lines require absolute, undeniable hygiene. Porous structural materials trap microscopic pathogens easily. Flaking surface coatings present a similarly severe production risk. If contaminated rust or tiny paint chips fall into the active product stream, you face immediate FDA or USDA compliance failures. These severe sanitation breaches trigger devastating, brand-damaging product recalls. Facilities must use naturally resistant, easily cleanable metals to eliminate these bacterial harboring zones entirely.

Maintenance Downtime

Operating environments heavily influence structural longevity. Chemical plants and high-humidity processing facilities quickly compromise untreated support bases. Corrosive atmospheres eat through weak metals aggressively. Eventually, maintenance teams must perform extensive, unplanned structural patching. They have to halt production lines entirely to weld fresh reinforcements or replace heavily degraded sections. This unplanned downtime cripples daily production quotas and inflates maintenance budgets rapidly.

Main Conveyor Frame Materials and Their Applications

Engineers rely on a few proven materials to build robust support systems. Each specific category serves a highly distinct industrial purpose.

Carbon Steel (The Heavy-Duty Baseline)

Carbon steel forms the solid backbone of modern heavy industry. Manufacturers shape it from standard channel steel, thick I-beams, or heavy structural tubing. It simply offers the highest load-bearing capacity per dollar spent on raw materials.

• Typical Applications: You will see carbon steel dominating the rugged mining sector. It easily handles jagged rock aggregates, heavily loaded pallets, and massive outdoor bulk material transport systems.

• Implementation Reality: It remains highly susceptible to aggressive environmental oxidation. Moisture ruins bare carbon steel incredibly fast. You must apply robust secondary surface treatments. Hot-dip galvanizing protects structures meant for harsh outdoor or highly humid use. Standard powder coating serves perfectly for dry, climate-controlled indoor manufacturing environments. Using premium Conveyor Frames built from adequately treated carbon steel ensures maximum durability in punishing bulk-handling scenarios.

• Best Practice: Always inspect powder-coated surfaces for deep scratches during initial equipment installation. Exposed raw steel will begin oxidizing within days.

Extruded Aluminum (Lightweight & Modular)

Aluminum introduces incredible mechanical flexibility into modern facility design. It primarily utilizes an engineered T-slot profile system. This unique metal naturally resists aggressive corrosion by forming a microscopic, protective oxidation layer instantly upon air exposure.

• Typical Applications: It visually dominates modern e-commerce fulfillment centers. Electronics manufacturing and precise robotics integration rely heavily on it. You will find it everywhere in lightweight packaging unit handling.

• Implementation Reality: It works beautifully for rapidly deployed "knock-down" systems. Facilities requiring fast assembly or frequent layout changes love extruded aluminum. However, you cannot use it for everything. It remains highly unsuitable for sudden, violent high-impact loads. It also degrades quickly during highly caustic chemical washdown routines.

• Common Mistake: Engineers sometimes under-spec the T-slot thickness to save budget. Always use robust 80x80mm profiles for main structural spans, reserving thinner profiles only for lightweight sensor mounts or light guides.

Stainless Steel (Sanitary & Corrosive Resistance)

Sanitary processing demands absolute material purity. Engineers typically specify 304 grade for standard food use. They step up to premium 316 grade for harsh chemical exposure or salty marine environments. It inherently resists deep rust and survives incredibly aggressive cleaning agents daily.

• Typical Applications: Meat and poultry processing plants require it exclusively. Dairy facilities, sterile pharmaceutical labs, and modular plastic belt washdown systems depend on it heavily.

• Implementation Reality: It carries a significant upfront price premium over basic carbon steel. Fabrication presents unique, difficult hurdles. It requires highly specialized TIG welding techniques to prevent severe heat-warping during manufacturing. Welders must grind and polish every joint to maintain hygienic, perfectly crevice-free surfaces.

• Best Practice: Ensure all horizontal structural spans feature a slight angular slope. This smart design choice actively prevents pooling water after harsh chemical washdowns.

Niche Frame Materials: FRP and Concrete

Sometimes, standard industrial metals simply fail. Extreme facility environments push engineers toward highly specialized structural alternatives.

• Fiberglass Reinforced Plastic (FRP): We strictly use this advanced composite in extreme chemical environments. It survives where even premium 316 stainless steel breaks down completely. It is incredibly lightweight and naturally non-conductive. However, it features significantly lower overall rigidity. Initial material costs often reach three to five times that of standard raw steel.

• Poured Concrete: Civil engineers utilize this in fixed, ultra-heavy-duty industrial environments. You see this heavily in permanent underground mines or massive ocean port terminals. Solid concrete perfectly eliminates harmonic equipment vibration and prevents hazardous foundation settling over decades of continuous use.

Core Evaluation Dimensions for Frame Selection

Selecting the ideal material requires a structured evaluation matrix. You must meticulously analyze specific engineering constraints before making a final procurement decision.

Static vs. Dynamic Load Capacity

You must calculate the absolute maximum product weight sitting per linear foot. However, static weight only tells half the mechanical story. You must mathematically add the dynamic shock load generated by sudden material drops. Feeding zones requiring heavy impact beds endure massive stress spikes hourly. If you handle heavy rock or bulk material drops, aluminum immediately falls off your list of viable structural options.

Environmental Exposure Matrix

You must rigorously evaluate the daily presence of operational hazards. Moisture, salt air, acidic chemicals, and sudden temperature extremes strictly dictate material survival. This specific matrix ultimately forces the choice between base metals and dictates necessary secondary protective coatings.

Material Performance Chart by Environment

Installation and Footprint Constraints

Determine whether the system acts as a permanent, immovable facility installation. Permanent lines strongly favor fully welded steel beams or poured concrete foundations. Conversely, flexible, temporary sorting lines strongly favor wheeled aluminum tripod bases or lightweight suspended ceiling designs. Properly matched Conveyor Frames drastically simplify the initial mechanical installation process and ensure longevity.

Implementation Risks: Joints, Coatings, and Hidden Costs

The core metal clearly matters, but secondary construction details dictate long-term success. Overlooking joints and metal profiles constantly invites disastrous mechanical failures.

Welded vs. Bolted Construction

Connection methods deeply determine overall structural rigidity. Welded steel structures offer superior long-term resistance against continuous harmonic equipment vibration. However, you cannot easily modify a welded line once installed on the floor. Bolted aluminum profiles offer incredible layout flexibility. Yet, they require routine maintenance torque checks. If ignored, the assembly hardware inevitably loosens under constant systemic motor vibration.

Coating Failures

Specifying thinly painted carbon steel in high-abrasion environments often backfires terribly. Abrasive rock dust quickly chips standard spray paint, leading to aggressive localized rust spots. Hot-dip galvanizing provides a much safer engineering assumption for harsh outdoor use. Strict industry standards recommend a minimum zinc layer thickness of 85μm. This deeply bonded barrier strongly resists minor physical impacts from dropped tools or rogue materials.

Tubular vs. Open-Profile Structural Risks

Profile geometry heavily influences both physical strength and facility hygiene. Tubular steel beams offer excellent torsional strength. They also conveniently hide messy internal electrical wiring. However, hollow tubes can harbor dangerous internal condensation and hidden rust if fabricators do not properly seal the metal ends. Open profiles, like classic C-channels, offer distinct maintenance advantages. Maintenance crews can easily visually inspect them and safely wash out accumulated debris daily. We highly recommend drilling small weep holes in tubular designs to allow trapped moisture to escape safely.

How to Shortlist Your Conveyor Frame Specifications

Follow this structured process to narrow down your material options effectively before contacting integrators.

1. Step 1: Define the Payload. Document the exact maximum unit weight, expected hourly throughput volume, and maximum vertical drop-impact force. This baseline step quickly rules out aluminum if you deal with massive heavy bulk items. It points you immediately toward structural steel.

2. Step 2: Audit the Environment. Identify daily washdown protocols, specific chemical exposure risks, and daily ambient temperature variances. This crucial audit immediately forces the shift to stainless options or mandates highly specific industrial zinc coatings.

3. Step 3: Determine Line Permanence. Assess the absolute likelihood of major facility layout changes over the next three to five years. This operational forecast clearly validates the necessity for modular aluminum profiles versus permanently fixed, heavily welded steel beams.

4. Step 4: Request Value-Engineered Quotes. Ask trusted systems integrators to quote a baseline carbon steel support structure equipped with premium coatings. Request a secondary option alongside it, like an extruded aluminum variant. This specific tactic allows you to objectively analyze the immediate budget-to-modularity ratio before issuing a final purchase order.

Conclusion

Selecting the correct metal or composite represents a careful engineering balancing act. You must align intense structural demands, harsh environmental realities, and strict initial budget constraints. Keep these actionable next steps in mind as you move toward procurement:

• Evaluate your true payload dynamics heavily before looking at material catalogs.

• Never compromise on sanitary metals if your product touches human food or medicine.

• Audit your exact facility environment thoroughly to specify the correct protective surface coatings.

• Choose modular aluminum profiles only if you genuinely plan to reconfigure your sorting lines frequently.

Accurate specification at the precise procurement stage prevents chronic, debilitating maintenance issues. By rigorously applying these engineering principles, you ensure your newly designed material handling system safely meets its projected operational goals.

FAQ

Q: What is the cost difference between carbon steel and stainless steel conveyor frames?

A: Depending on the current market and the specific grade chosen (304 versus 316), stainless steel generally costs 2.5 to 4 times more than standard carbon steel. This significant multiplier factors in both the higher raw material price and the specialized, labor-intensive fabrication and welding costs required to prevent heat warping.

Q: Can aluminum conveyor frames handle heavy loads?

A: Aluminum primarily supports light-to-medium unit handling. Integrators typically restrict it to packaged goods weighing under 50 to 100 kg. For heavy, high-impact drops or massive bulk material handling, heavy-duty structural steel remains the absolute necessary standard to prevent hazardous long-term structural deflection.

Q: How do I protect steel conveyor frames in outdoor environments?

A: For outdoor applications constantly exposed to moisture and varying harsh climates, hot-dip galvanizing remains highly recommended over standard spray paint or basic powder coating. Galvanizing provides a much thicker, metallurgically bonded zinc barrier that aggressively prevents invasive rust from forming underneath the surface.

Q: What frame material is required for FDA-compliant food processing?

A: Most direct-contact or intensive washdown food processing zones strictly require 304 or 316 grade stainless steel. Fabricators must utilize continuous, smoothly polished welds to completely eliminate microscopic crevices where dangerous bacteria can accumulate. Aluminum generally safely serves only in secondary packaging zones where food is already sealed.
