Uncontrolled material drops at conveyor loading zones consistently cause catastrophic operational failures. They rip expensive conveyor belts, trigger fugitive material spillage, and force unscheduled downtime. These unexpected halts paralyze facility throughput and massively inflate maintenance expenses. To solve this, operators must deploy a dedicated hardware intervention tailored for high-stress areas. Installing a high-quality Impact Roller provides the critical structural support needed to absorb severe kinetic energy. Modern plant managers can no longer rely on generic claims of belt protection. Instead, you must demand precision-engineered solutions that deliver quantifiable business outcomes. A well-specified roller significantly reduces operating expenses, extends your belt’s operational lifespan, and lowers continuous energy consumption. In this guide, we will explore the precise engineering principles behind these advantages. You will learn how to specify materials, evaluate suppliers, and strategically protect your heavy industrial equipment.
Key Takeaways
Risk Mitigation: Impact rollers absorb kinetic energy at loading zones, drastically reducing belt puncture risks and localized wear.
Operational Efficiency: Precision-sealed bearings and low-friction designs reduce motor drag, while self-cleaning properties prevent material blockages.
Specification Standards: High-quality units feature 3–6.3 mm steel tubes, 65 Shore A hardness rubber, and C3 clearance bearings.
Strategic Upgrades: For extreme drop heights or ultra-heavy loads, impact rollers may need to be substituted or supplemented with UHMW-topped impact beds.
The Physical and Economic Advantages of Impact Rollers
Standard carrying rollers handle static loads well. They fail miserably under dynamic high-impact loads. Sudden heavy drops bend standard roller shafts rapidly. They shatter internal bearings almost instantly. This structural damage causes immediate belt misalignment. You face expensive unscheduled downtime to fix these localized issues. Relying on standard components in drop zones is a costly engineering mistake.
Preventing Catastrophic Belt Damage

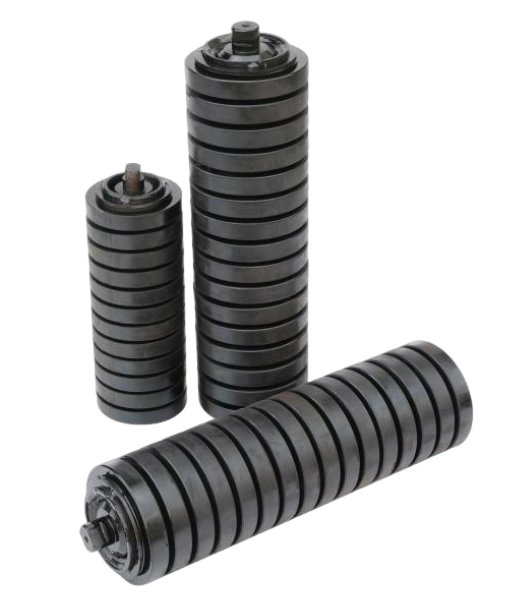

A heavy-duty Impact Roller solves this problem through clever material science. Manufacturers compress multiple robust rubber discs onto a steel shell. These discs deform slightly when struck by falling bulk materials. This vital deformation absorbs immense kinetic energy safely. It redirects destructive forces away from vulnerable components. It prevents sharp rocks or heavy lumps from piercing the belt fabric.
Conveyor belts represent the most expensive consumable component in your facility. Protecting them extends your equipment lifecycle significantly. Consider the economic reality of a severe puncture. You must halt production entirely. You must pay emergency splicing crews. You lose hours of profitable throughput. Proper hardware prevents these catastrophic financial losses entirely.
Improving Material Containment and Flow
Material containment remains a constant operational struggle for bulk handlers. Poorly supported belts sag between idlers at the loading point. This sagging creates gaps where material escapes easily. Fugitive dust and aggregates spill onto the floor. An Impact Roller specifically supports the belt during these vulnerable moments. It minimizes unwanted belt sag completely.
This targeted support yields multiple operational outcomes:
It reduces fugitive material spillage around vulnerable loading zones.
It prevents severe mechanical jamming and blockages along the line.
It lowers continuous manual cleanup costs and labor hours.
It ensures stricter compliance with occupational safety and hazard standards.
Advanced Engineering Features That Drive Long-Term ROI
Inferior hardware ruins operational efficiency quickly. Cheap components wear down unevenly. They require constant supervision and premature replacement. Quality units change this dynamic entirely. They utilize advanced engineering principles to maximize your long-term returns. They protect your primary drive systems from unnecessary strain.
Energy Efficiency and Reduced Motor Load
Failing rollers create severe high friction during rotation. This friction demands much higher power loads from your conveyor motor. A premium Impact Roller uses precision self-lubricating bearings. Engineers typically specify the 6204 to 6310 C3 series for these tasks. These specialized bearings optimize rotational inertia effortlessly.
They minimize physical dragging across the belt surface. The financial impact of this low-friction design is highly noticeable. You will experience lower starting current peaks upon system activation. You will also measure reduced continuous energy consumption across your entire plant. Easing the load on your primary motors extends their service life substantially.
Harsh Environment Durability and Corrosion Resistance
Industrial environments destroy standard steel quickly. Wet, acidic, or highly abrasive settings accelerate this degradation heavily. Coal washing facilities and chemical plants face this reality daily. Traditional rollers rust, seize, and snap under these harsh chemical conditions. Facilities burn through replacement budgets trying to maintain standard steel.
Advanced high-density polyethylene (HDPE) or polymer-composite units offer a brilliant alternative. They resist chemical corrosion naturally without extra coatings. These specialized materials offer up to a 5x lifespan increase in hostile environments. They also weigh up to 1/7th of traditional steel. Lighter components reduce rotational mass significantly. They make installation safer and lower the continuous strain on your motor drives.
How to Evaluate and Specify an Impact Roller
Do not treat these critical components as generic commodities. Procurement teams must demand specific technical tolerances from suppliers. Buying cheap rollers guarantees frequent replacements. It also endangers your expensive belting. You must establish strict evaluation dimensions before issuing a purchase order.
Core Material Specifications
You need strict material baselines to ensure long-term durability. Every component within the unit must meet industrial benchmarks. Use the following specifications as your baseline:
Component | Required Specification | Operational Purpose |
Tube Thickness | 3 mm to 6.3 mm minimum | Prevents the foundational steel core from bending under heavy structural loads. |
Rubber Quality | 65 Shore A hardness | Achieves the perfect balance between shock absorption and structural integrity. |
Sealing Systems | Multi-labyrinth seals | Keeps dust and moisture out to ensure lifetime bearing lubrication holds true. |
If rubber rings are too soft, they wear out immediately. If they are too hard, they transfer destructive shock directly to the belt. The 65 Shore A rating represents the ideal middle ground. Multi-labyrinth seals remain equally critical. They block microscopic dust particles from ruining internal bearing grease.
Installation Geometry and Engineering Layout

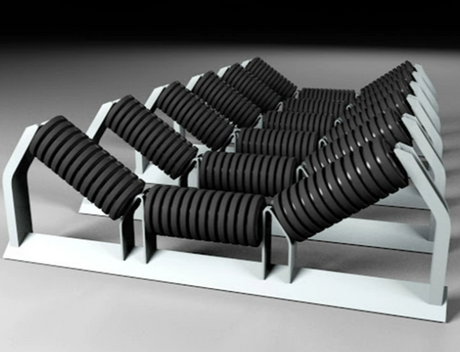

Proper installation geometry dictates operational success. Implementation reality requires precise engineering layouts. You should install units with a spacing of 100 mm to 600 mm. Place them directly beneath the material drop zone. Exact spacing calculations depend heavily on your specific material.
You must consider lump size and material specific gravity. Heavy, jagged ores require tighter spacing. Lighter agricultural products allow wider gaps. Evaluate maintenance modularity before purchasing. Check if the manufacturer allows individual rubber ring replacements. Modular designs prevent full-roller disposal upon minor localized wear. You save significant money by replacing only the damaged rings.
Impact Rollers vs. Alternative Solutions (Shortlisting Logic)
You must apply strict shortlisting logic when upgrading systems. Different hardware solves completely different operational problems. Plant operators often waste budgets applying the wrong fix to a loading zone problem. Understanding distinct component roles prevents these costly engineering mistakes.
Impact Rollers vs. Guide Rollers
Plant operators often confuse different roller functions. Guide rollers mount vertically on your belt edges. They exist strictly for tracking correction. They push wandering belts back to the center line. They cannot handle heavy downward forces at all.
A Impact Roller mounts horizontally right under the load point. It exists solely for energy dissipation. Both components remain essential for healthy systems. However, they serve distinct budgets, goals, and functions. Do not substitute one for the other. Using a standard carrying roller in an impact zone guarantees rapid mechanical failure.
When to Upgrade to an Impact Bed
Every roller has a maximum structural shock threshold. Ultra-high drop zones push these limits daily. Massive aggregate drops will eventually overwhelm standard rubber discs. Even heavy-duty rollers may allow harmful micro-sagging under extreme stress. Transitioning to an Impact Bed solves this scalability limit.
Feature | Impact Rollers | Impact Beds |
Support Type | Segmented rolling support | Continuous static support |
Friction Level | Very low (rolling mechanism) | Low (requires UHMW top layer) |
Best Application | Medium to high drop zones | Extreme drop heights / Massive lumps |
Impact beds feature high-energy absorption rubber bases. A top layer of ultra-high-molecular-weight (UHMW) polyethylene covers the bed. This provides continuous, gap-free belt support. It maintains incredibly low friction. When impact forces exceed standard thresholds, you must step up to a bed system. Many facilities use a hybrid approach. They install beds directly under the heaviest drop, followed immediately by heavy-duty rollers.
Implementation Risks and Maintenance Realities
Even the finest hardware fails without proper maintenance protocols. Operational success depends on human execution. You must manage implementation risks proactively. Ignoring these realities diminishes your potential returns rapidly.
Predictive Monitoring
Stop relying on outdated run-to-failure maintenance strategies. They cause catastrophic production halts unexpectedly. Shift your facility toward proactive predictive maintenance instead. Monitor hardware for structural misalignment regularly. Listen for unusual acoustic profiles during operation. A squealing or grinding noise indicates early bearing failure.
Track any signs of early rubber degradation closely. Watch for asymmetrical wear patterns on the discs. This intelligence allows safe replacements during scheduled downtime. It completely avoids expensive emergency halts. Predictive monitoring transforms maintenance from a panic response into a controlled, budget-friendly process.
Staff Training
Theoretical ease of installation often misleads facility managers. Practical returns require serious hands-on execution. You must train your maintenance crews extensively. Implement a strict training curriculum for all relevant personnel:
Teach proper belt tensioning techniques prior to hardware installation.
Demonstrate exact alignment procedures during component replacement.
Establish a standard operating procedure for bearing torque settings.
Train staff to identify early warning signs of abnormal disc wear.
Poor installation ruins perfect hardware. An improperly aligned unit generates severe heat and friction. It will strip the belt edge and fail prematurely.
Supplier Evaluation
Assess vendor capabilities carefully before signing long-term contracts. Do not select suppliers based solely on initial purchase price. Ensure they maintain localized compliance standards for your region. Verify their strict adherence to ISO manufacturing tolerances.
Confirm the timely availability of spare rubber rings and bearings. A missing spare part can halt your entire production line for days. Ask potential vendors about their inventory buffering strategies. A reliable supplier acts as a true operational partner, not just a parts catalog.
Conclusion
These hardware assets deliver immense strategic value to heavy industries. They are not merely disposable replacement parts. They act as frontline defensive assets for your facility. A well-placed Impact Roller protects expensive capital equipment like belts and motors. It absorbs punishing kinetic energy safely. It stabilizes your operational throughput consistently over years of service.
Encourage your engineers and procurement teams to take immediate action today. Audit your current loading zones thoroughly. Look carefully for excessive belt sag, high spillage rates, and frequent bearing failures. Use our specified criteria to demand better solutions from the market. Request technical datasheets highlighting Shore A hardness, bearing type, and spacing recommendations. Partner only with highly qualified manufacturers who understand industrial realities. Upgrading your load zones eliminates unexpected downtime and maximizes your long-term operational profitability.
FAQ
Q: What is the difference between an impact roller and a standard carrying idler?
A: Standard idlers have smooth steel or polymer shells designed for low-friction transport. Impact rollers feature thick rubber discs designed specifically to compress and absorb kinetic energy at the loading zone.
Q: Are impact rollers truly maintenance-free?
A: No mechanical component is entirely maintenance-free. While high-quality units feature sealed, lifetime-lubricated bearings, the rubber rings will eventually wear and require inspection or replacement based on material abrasiveness.
Q: How do I determine the correct spacing for impact rollers?
A: Spacing generally ranges from 100 mm to 600 mm. However, the exact calculation depends heavily on belt speed, material specific gravity, aggregate lump size, and total drop height.
Q: Can I replace just the rubber discs instead of the whole roller?
A: Yes. Many premium impact roller designs are completely modular. This allows maintenance teams to slide off damaged rubber rings and replace them. It significantly lowers long-term maintenance costs and reduces waste.
