In the demanding world of bulk material handling, conveyor belts represent your highest recurring expense. Protecting this massive capital investment requires precise and strategic roller application. Plant operators frequently experience premature belt failure or unexpected system downtime. Often, they misdiagnose the actual root cause of this persistent wear. Is your belt suffering from sudden vertical shock, or is it experiencing gradual lateral drift?
Understanding this specific difference separates a highly optimized plant from one plagued by constant repairs. You must correctly differentiate between absorbing heavy kinetic energy at drop zones and maintaining horizontal belt alignment along the frame. Making the right choice acts as a strategic engineering and ROI decision rather than a simple parts swap.
In this comprehensive guide, we will break down exactly how and where to deploy specific rollers. You will learn the mechanical differences, evaluate CEMA load standards, and discover actionable maintenance strategies. Ultimately, you will gain the knowledge needed to safeguard your conveyor ecosystem and minimize unscheduled downtime.
Key Takeaways
Impact Rollers are engineered to absorb massive vertical shock loads at transfer points, utilizing rubber rings to prevent belt puncturing.
Guide Rollers are vertically or horizontally mounted edge-protectors designed to prevent lateral belt drift and edge fraying.
Selecting the correct component requires evaluating CEMA load standards, drop heights, material density, and environmental sealing (IP ratings).
Applying the wrong roller type leads to accelerated wear: guide rollers cannot absorb vertical shock, and impact rollers cannot correct severe belt misalignment.
Framing the Operational Problem: Shock Absorption vs. Belt Tracking
Conveyor systems face distinct operational threats every single day. We must define these threats clearly to protect equipment longevity and ensure smooth plant operations. Two major structural culprits destroy conveyor belts over time. The first culprit is kinetic energy damage. Heavy, dense materials drop aggressively onto the belt at loading zones. This continuous action creates immense downward force.
The second major culprit is friction damage. Sometimes, the belt wanders off its intended path along the steel frame. It violently rubs against metal brackets or concrete supports. These two distinct problems require completely different mechanical solutions. Applying the wrong component wastes money and accelerates structural failure.
To successfully resolve these issues, we must establish clear operational success criteria. Your primary goals should include:
Maximizing the overall lifecycle of the main conveyor belt.
Minimizing unscheduled maintenance stops and production bottlenecks.
Reducing unnecessary strain on the conveyor drive motors.
Lowering the frequency of replacement part orders.
To achieve these goals, you must understand the core distinction between the components involved. You use a Impact Roller specifically to address vertical, downward forces. These forces happen when material physically hits the belt. Conversely, you use guide rollers to address lateral, side-to-side forces. These forces occur when the belt drifts out of its proper horizontal alignment.
Impact Rollers: Engineering Criteria for Transfer Points

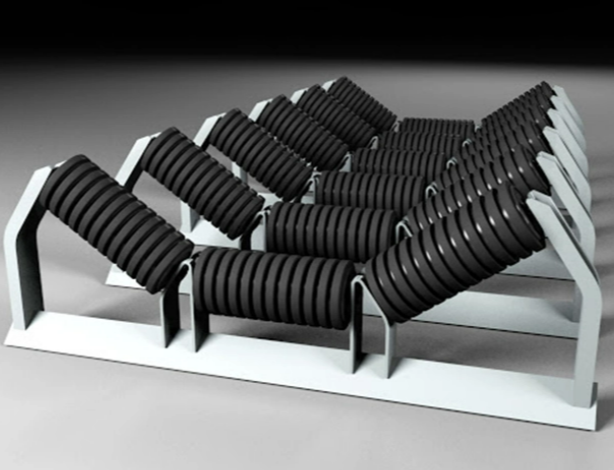

When heavy materials plummet from chutes onto a moving belt, the resulting kinetic energy threatens to puncture the belt carcass. You install specific components tightly grouped at these loading and transfer points. We commonly call these areas "drop zones." An Impact Roller sits directly beneath the belt in these highly volatile sections to catch the falling load.
The design mechanics behind these rollers reflect their heavy-duty purpose. They feature extremely thick steel shells. Engineers wrap these strong steel cores in heavy-duty rubber rings or discs. The rubber acts as a primary shock absorber. The Shore A hardness of this rubber plays a critical role in its effectiveness. Typically, manufacturers target a rubber hardness between 60 and 70 Shore A. This specific density provides enough give to absorb violent shocks but remains firm enough to support the belt structure.
Authoritative industry standards govern how we select these components. You cannot simply guess the required load capacity. Engineers rely on the Conveyor Equipment Manufacturers Association (CEMA) load classes. For heavy-duty mining or aggregate applications, you generally specify CEMA D or CEMA E classes. Furthermore, the internal bearings must withstand extreme vibration. You should look for precision bearings featuring a high L10 life expectation. A standard benchmark is an L10 life of 30,000+ hours, meaning 90% of the bearings will survive past this operational threshold.
The operational outcome justifies the initial engineering investment. Properly specified impact components extend belt life dramatically. In high-impact zones, facilities often see belt longevity increase by three to five times. The rubber discs prevent structural micro-tears in the fabric. They also protect the delicate belt splices from cracking under sudden weight. This targeted shock absorption ensures your conveyor keeps running without catastrophic fabric failure.
Guide Rollers: Mitigating Lateral Drift and Edge Wear
While drop zones suffer from vertical punishment, the entire length of the conveyor faces the threat of lateral drift. Belts rarely run perfectly straight on their own. Uneven loads, environmental winds, and slight frame misalignments push the belt sideways. You install guide rollers—frequently called side rollers—along the outer edges of the conveyor frame. You place them specifically in known troubleshoot areas prone to severe misalignment.
The design mechanics of a guide roller differ vastly from drop-zone components. They utilize a solid steel construction. Many modern variants feature a specialized polyurethane coating. This durable coating drastically reduces friction between the roller and the rubber belt edge. You will also notice their physical size. They feature a much smaller diameter compared to standard carrying idlers.
Understanding their functional limitations is crucial for trustworthy plant maintenance. Guide rollers act as purely passive barriers. They physically block the belt from moving too far off the frame. They do a fantastic job preventing immediate edge wear. However, they do not proactively fix the root-cause tracking issues. This passive nature distinguishes them from active self-aligning training idlers. Training idlers actively pivot the mechanical frame to steer the belt back to the center.
Relying on a guide roller provides a distinct ROI. When a belt constantly rubs against a fixed steel frame, the friction strains the drive motor. This excess strain draws more amperage and wastes electrical power. A smooth, spinning side roller eliminates this harsh friction. It reduces friction-induced motor strain. Most importantly, it prevents catastrophic belt edge fraying. When belt edges fray, moisture enters the inner fabric carcass, causing rapid internal delamination.
Technical Decision Matrix: Impact vs. Guide Rollers
Choosing the right component requires a clear evaluation framework. You must assess the primary function, the physical installation zone, and the exact load orientation. To simplify this engineering decision, we have constructed a direct comparison table below. Use this matrix to evaluate your current system needs.
Evaluation Dimension | Impact Roller | Guide Roller |
Primary Function | Heavy kinetic shock absorption. | Passive lateral alignment and edge protection. |
Installation Zone | Chute drop zones and material loading points. | Outer frame edges in known troubleshoot zones. |
Material Construction | Thick steel core wrapped in heavy rubber discs. | Solid steel or low-friction polyurethane-coated. |
Load Orientation | Vertical, intense downward impact. | Lateral, side-to-side passive friction. |
Cost Implication | Higher initial capital (heavy-duty bearings and rubber rings). | Lower unit cost but requires strategic, repeated placement. |
Your shortlisting logic should start with a comprehensive physical audit of your current system. Walk the length of the conveyor while it is locked out and tagged out. First, inspect the underside of the main belt. Do you see bruising, pitting, or star-shaped micro-tears? If so, you suffer from vertical shock. You urgently need to upgrade to a heavier CEMA-class Impact Roller system.
Next, inspect the outer edges of the belt. Do you see frayed fabric, exposed steel cords, or melted rubber? If so, you suffer from lateral tracking issues. You need to install guide rollers to protect the immediate edge. Furthermore, you must schedule a complete laser alignment of your structural frame to fix the actual drifting root cause.
Implementation Realities, Maintenance, and Risks
Installing these components is only the first step. You must understand the daily environmental degradation they face. Conveyor systems operate in brutal conditions. Dust, moisture, and corrosive materials constantly attack moving parts. These environmental factors dictate your bearing seal requirements. You must carefully specify the Ingress Protection (IP) ratings for both roller types.
For standard indoor operations, an IP55 rating might suffice. However, for outdoor mining or wet aggregate processing, you absolutely need IP66 or IP67 ratings. A high IP rating ensures triple-labyrinth seals keep microscopic dust and high-pressure water away from the precision bearings. If the bearings seize, the roller stops spinning. The moving belt will then slice right through the stationary steel shell.
You also need to understand rubber wear realities. The protective rubber rings degrade over time. Constant pounding hardens the rubber compounds. UV light and ozone exposure accelerate this hardening process. When the rubber hardens, it loses its vital shock-absorption capacity. It transfers the kinetic energy straight into the belt instead of absorbing it. Therefore, you require strictly scheduled visual inspections. Maintenance teams must replace these units before the rubber fully petrifies.
We must also warn you against a common "Band-Aid" risk. Many plant operators over-rely on side rollers to fix severe structural misalignment. They treat the symptom instead of the disease. If the structural frame is crooked, the belt will push outward with immense force. Excessive pressure on a side guide will eventually burn through the belt edge entirely. Alternatively, the lateral force will simply snap the steel mounting bracket right off the frame.
To optimize your maintenance program, we highly recommend standardizing your bearing sizes across the facility. Work with your engineering team to utilize identical bearing and shaft specifications wherever possible. This strategic adoption advice significantly reduces your spare parts inventory overhead. It prevents maintenance crews from fumbling with incompatible brackets during critical, time-sensitive emergency repairs.
Conclusion
Safeguarding your conveyor belt requires precise engineering choices. We have clearly established that these two specialized components serve completely non-competing, complementary roles within a healthy conveyor ecosystem. They fight different battles. One absorbs violent vertical shocks, while the other defends against lateral friction.
However, we must reiterate a balanced, realistic claim. No single roller can magically fix a fundamentally flawed conveyor frame design. These components act as vital risk-mitigation tools. They buy you operational time and protect your expensive belt, but they do not replace structural integrity.
Your next steps should focus on proactive maintenance. We encourage plant managers to take the following actionable measures:
Conduct a holistic load-zone audit to identify hidden bruising on the belt carcass.
Consult with a dedicated application engineer to specify the correct CEMA class for your material density.
Upgrade your bearing seals to IP66 or IP67 if you operate in high-dust or wash-down environments.
Schedule quarterly laser alignments for your main conveyor frames to eliminate aggressive lateral drift.
FAQ
Q: Can I use standard carrying rollers instead of an impact roller at a drop zone?
A: No. Standard carrying idlers feature thin steel shells and standard bearings. Dropping heavy material onto them causes immediate bearing blowout. The steel shell will likely dent or shatter. Once shattered, the jagged steel edges will violently puncture your expensive belt carcass, leading to catastrophic downtime.
Q: How long do the rubber rings on an impact roller last?
A: Lifespan depends heavily on operational variables. Key factors include daily tonnages, average drop height, and material abrasiveness. In moderate conditions, they can last two to three years. In extreme, continuous mining applications, you may need to replace them every six to twelve months as the rubber naturally hardens and degrades.
Q: What is the difference between a guide roller and a self-aligning idler?
A: A guide roller provides passive physical blocking. It mounts rigidly to the side of the frame to stop the belt edge from rubbing against steel. A self-aligning idler is an active mechanical component. It sits under the belt and pivots the entire roller frame to actively steer the wandering belt back to the center line.
Q: Do guide rollers increase power consumption?
A: When used correctly, they actually reduce overall power consumption. They provide a smooth, spinning surface that eliminates harsh friction between the belt and the static frame. However, if a belt constantly grinds heavily against the guide, it indicates a severe structural misalignment that will eventually draw excess motor amperage.
