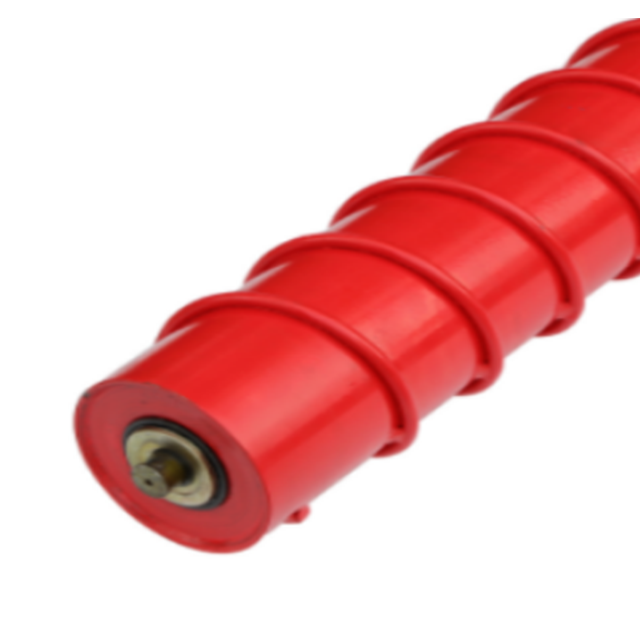

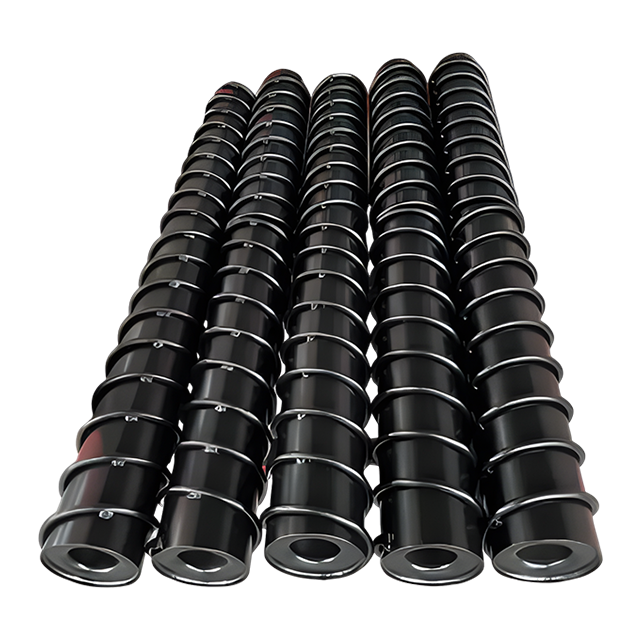

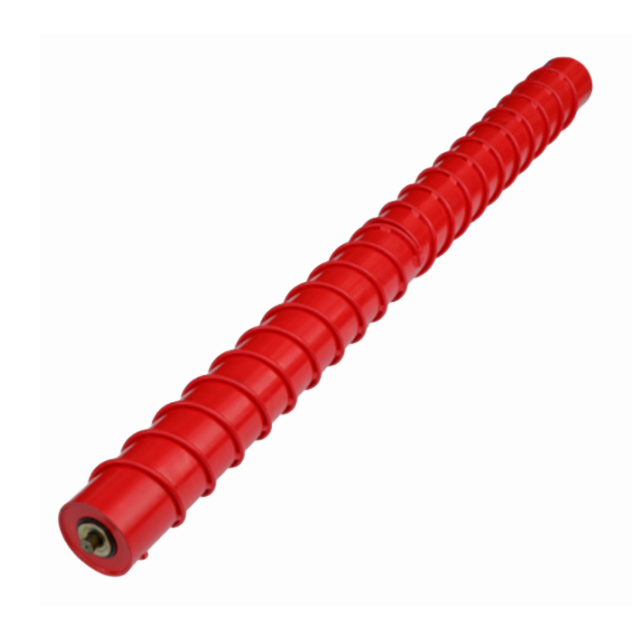

A spiral return idler is a specially designed conveyor roller used on the return side (non-carrying side) of a conveyor belt. It features a continuous, one-piece helical spiral (typically made of steel or polymer) wrapped around a central shaft. This unique design helps clean the belt, prevent material buildup, and reduce belt mistracking.
Self-Cleaning Spiral Design
The most direct advantage of the spiral profile is its self-cleaning action. As the belt passes over the return idler, the spiral shape scrapes and sheds sticky or wet residual material (examples listed include coal, clay, and grain), helping keep the belt surface cleaner over time. In practice, this means less build-up on the return path and better day-to-day conveyor cleanliness without relying solely on external cleaning devices.
Gentle Belt Alignment Support (Reduces Mistracking)
This product is also positioned as a belt-guiding solution. The spiral’s angled/helical geometry can gently guide the belt back toward the center, helping reduce side drift and mistracking on the return run. This is especially useful in applications where tracking issues are frequent due to uneven loading, sticky material residue, or long conveyor runs.
Reduced Carryback Accumulation Under the Conveyor
Carryback that drops from the return belt often accumulates beneath conveyors, creating housekeeping and safety concerns. The spiral return idler is designed to minimize material accumulation by reducing what remains attached to the belt on the return side. Cleaner return belts typically translate into less spillage and fewer cleanup tasks around the conveyor structure.
Better Ventilation Around the Return Belt
The spiral design also promotes air circulation around the belt. On sites where belts run through humid zones or material leaves moisture on the belt surface, ventilation helps the return belt dry faster, which can reduce wear related to damp carryback and reduce the tendency of fines to cake onto belt/rollers.
Low Maintenance Concept (Cleaner Function Integrated into the Idler)
Because the idler itself contributes to belt cleaning, the page highlights that additional scrapers or cleaners may not be necessary in certain setups—meaning the system can be simplified while still maintaining cleaner belt operation. For many users, this “built-in cleaning” approach helps reduce the number of wear parts and routine interventions required on the return side.

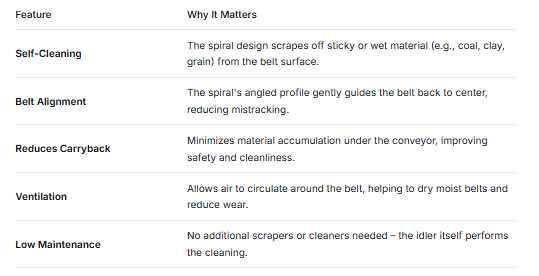

Key Functions & Benefits

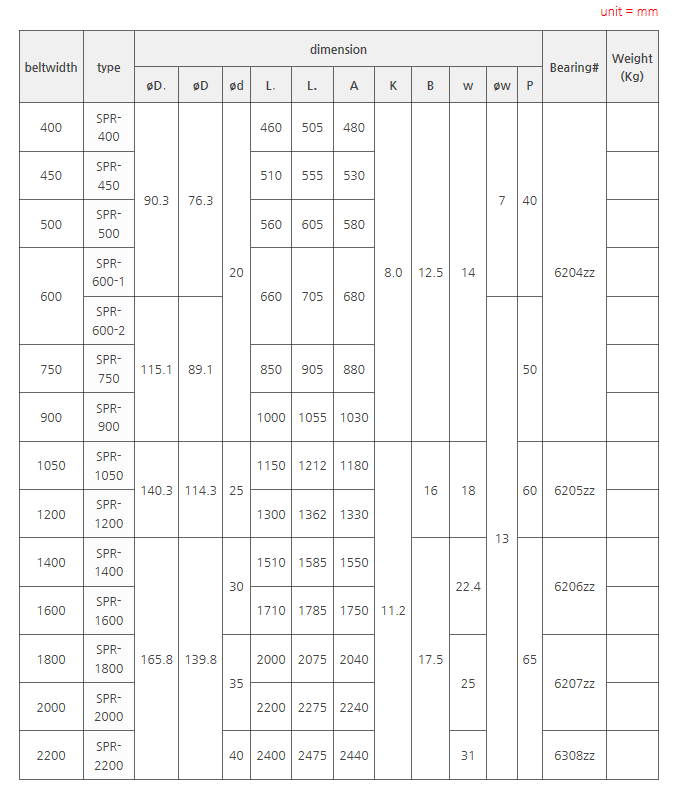

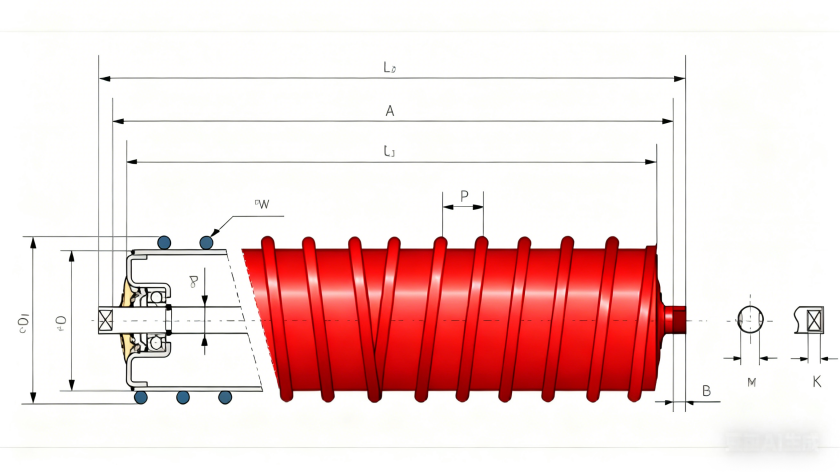

Drawing and Parameters:
