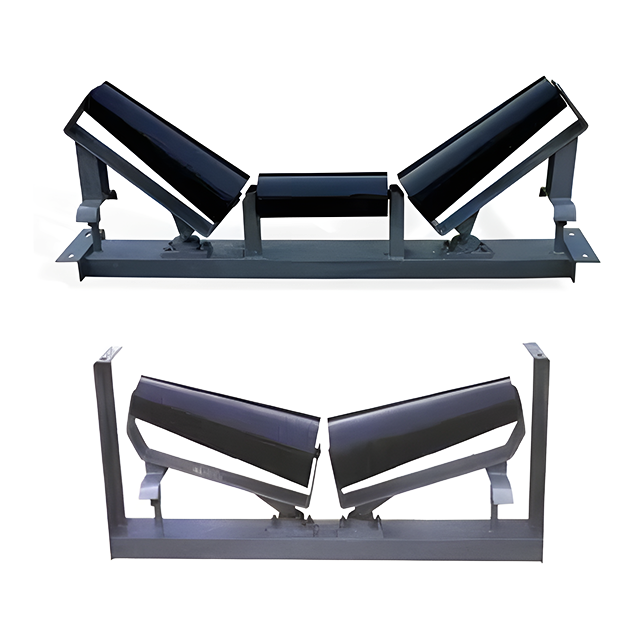

Conical Taper Self-Aligning Roller Set

This set features rollers with a conical (tapered) shape. When a conveyor belt drifts to one side, it rides up the tapered section. This creates increased friction and leverage, which automatically causes the roller frame to pivot. The pivoting action guides the belt back to the center.

Core Idea: Uses a tapered shape to convert belt drift into a self-correcting alignment force.

Key Benefit: Simple, robust, and effective automatic belt tracking.

Best For: Correcting minor to moderate belt misalignment in bulk handling systems.

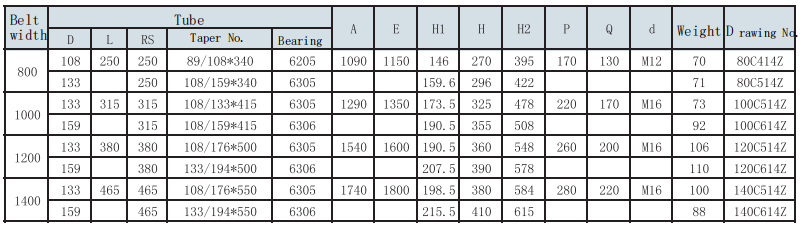

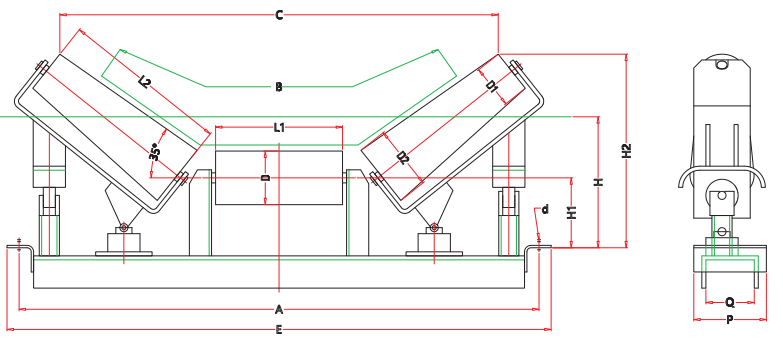

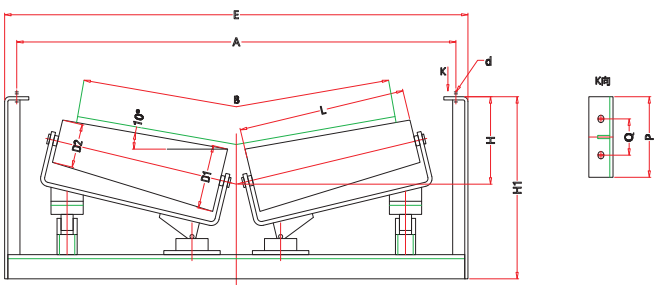

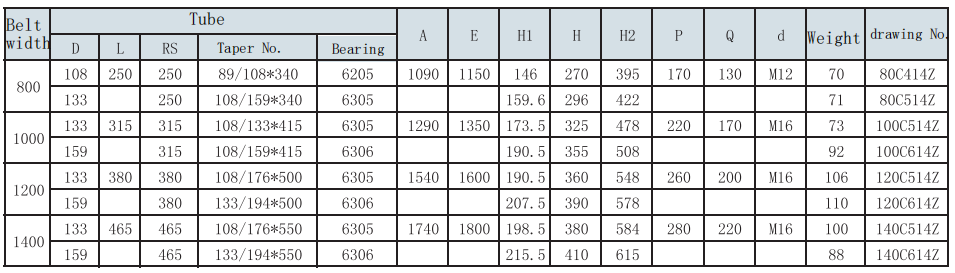

Drawing and Parameters:
